01 - Upper Oven Parts


02 - Lower Oven Parts

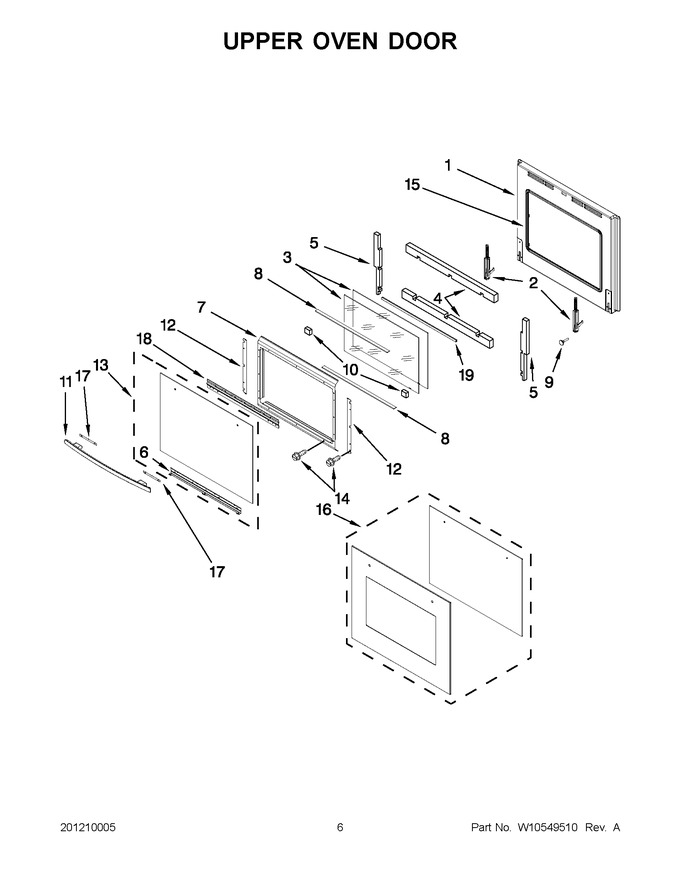

03 - Upper Oven Door


04 - Lower Oven Door


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10187019		Liner, Door   (Replaces: W10187019)				$ 304.71
2	W10176157		Hinge, Door (black)				$ 85.86
2	W10277751		Hinge, Door (stainless)				$ 50.69
3	W10176100		Glass, Inner				$ 101.18
4	W11688417		Insulation, Door (horizontal)   (Replaces: W10273676)				$ 22.37
5	W10273591		Insulation, Door (vertical)				$ 39.20
6	W10176175		Bracket, Door Clip		Appelez-nous	-
7	W10176103		Retainer, Door Glass				$ 135.05
8	W10277580		Insulation, Door		Appelez-nous	-
9	W10176233		Bumper, Door		Appelez-nous	-
10	W11684783		Insulation, Corner Door   (Replaces: W10296505)		Appelez-nous	-
11	W10186755		Handle, Door (black)				$ 240.68
11	W10186756		Handle, Door (stainless)				$ 139.42
12	W10186882		Bracket, Inner Door Glass				$ 29.84
13	W10186890		Glass, Outer Door Assembly (stainless)				$ 161.66
13	W10186889		Glass, Outer Door Assembly (black)				$ 149.19
14	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
15	W10213803		Glass, Cavity				$ 95.22
16	W10176184		Assembly, Glass Kit (stainless)		Appelez-nous	-
16	W10277593		Assembly, Glass Kit (black)		Appelez-nous	-
17	W10213722		Pad, Handle Foam				$ 84.48
18	W10176126		Bracket, Handle				$ 137.66
19	W10305979		Silicone, Inner Glass				$ 88.95

    View Diagram in Separate Window       Print Part List
