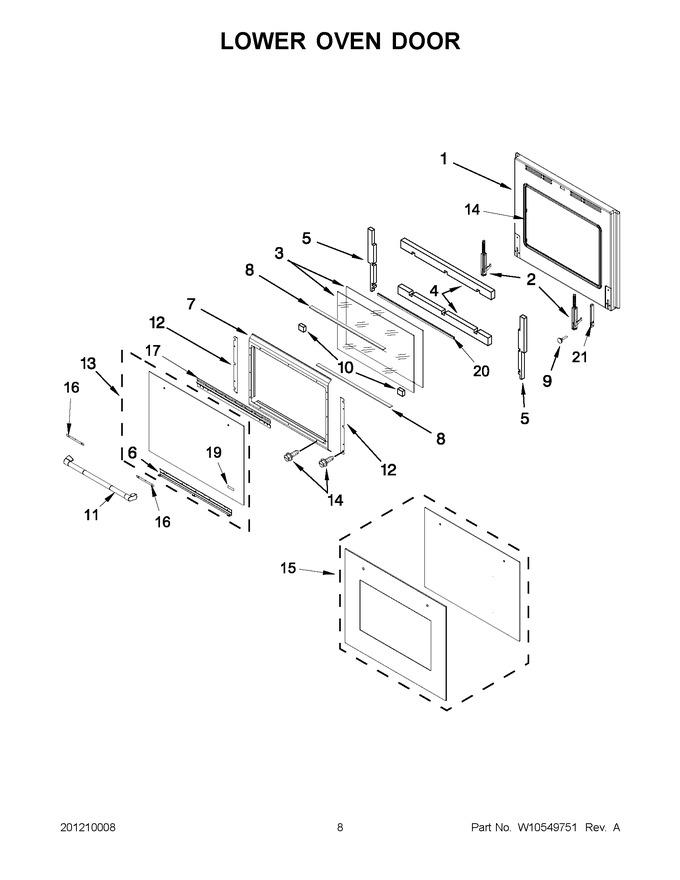

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10187019		Liner, Door   (Replaces: W10187019)				$ 304.71
2	W10277751		Hinge, Door (stainless)				$ 50.69
3	W10176100		Glass, Inner				$ 101.18
4	W11688417		Insulation, Door (horizontal)   (Replaces: W10273676)				$ 22.37
5	W10273591		Insulation, Door (vertical)				$ 39.20
6	W10176175		Bracket, Door Clip		Appelez-nous	-
7	W10176103		Retainer, Door Glass				$ 135.05
8	W10277580		Insulation, Door		Appelez-nous	-
9	W10176233		Bumper, Door		Appelez-nous	-
10	W11684783		Insulation, Corner Door   (Replaces: W10296505)		Appelez-nous	-
11	W10856834		Assembly, Door Handle   (Replaces: W10187014)				$ 287.78
12	W10186882		Bracket, Inner Door Glass				$ 29.84
13	W10209065		Assembly, Outer Door Glass				$ 154.76
14	W10213803		Glass, Cavity				$ 95.22
15	W10187006		Kit, Glass Assembly (pro-style)				$ 440.82
16	W10213723		Pad, Handle Foam				$ 70.31
17	W10213720		Bracket, Handle				$ 132.57
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
19	WPW10159578		Assembly, Badge (stainless)   (Replaces: W10159578)			Immediately	$ 75.89
20	W10305979		Silicone, Inner Glass				$ 88.95
21	W10175993		Hinge, Receiver				$ 44.06
