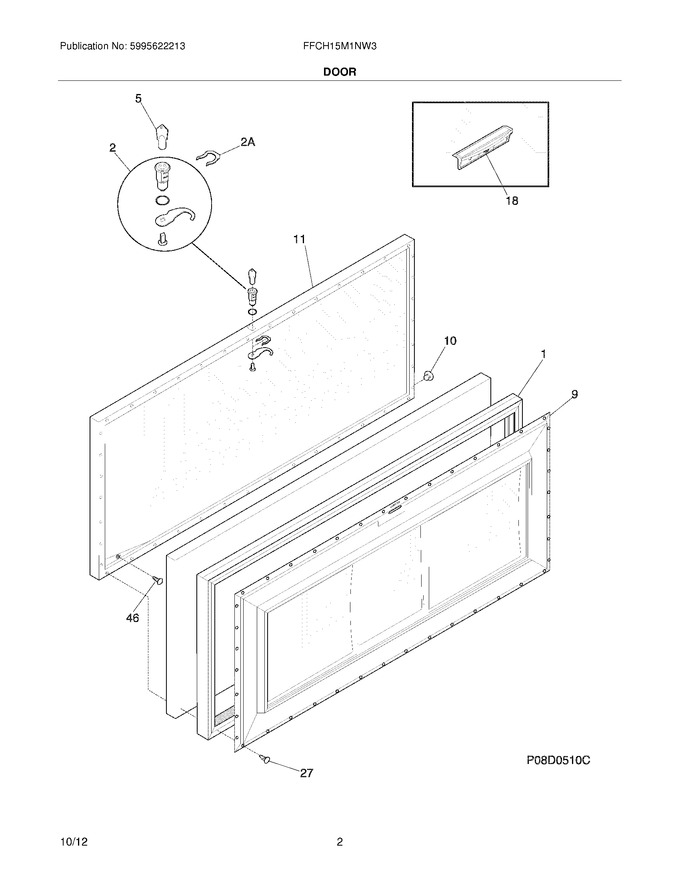

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481211 | Gasket-door,white |
|
$ 204.03 | |||||
| 2 | 297090100 | Lock Assy |
|
$ 21.27 | |||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 7.57 | ||||
| 9 | 216057804 | Panel-inner Lid,white |
|
$ 140.44 | |||||
| 10 | 216923001 | Plug Button,1/4`` ,white |
|
$ 9.87 | |||||
| 11 | 216129901 | Panel-lid |
|
- | |||||
| 18 | 297034200 | Handle,recessed ,white ,incl/gasket |
|
$ 13.00 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 46 | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 13.01 | |||||
| 2A | 297090900 | Clip,spring |
|
$ 10.85 | |||||
| NI | 5303925098 | Insulation |
|
$ 120.65 | |||||
| NI | 216858001 | Screw,8-18x.50 Ab ,no.10 |
|
Immediately | $ 10.85 | ||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 |
