SELECT A DIAGRAM

01 - Cover


03 - Freezer Dooe


05 - Refrigerator Door


07 - Cabinet

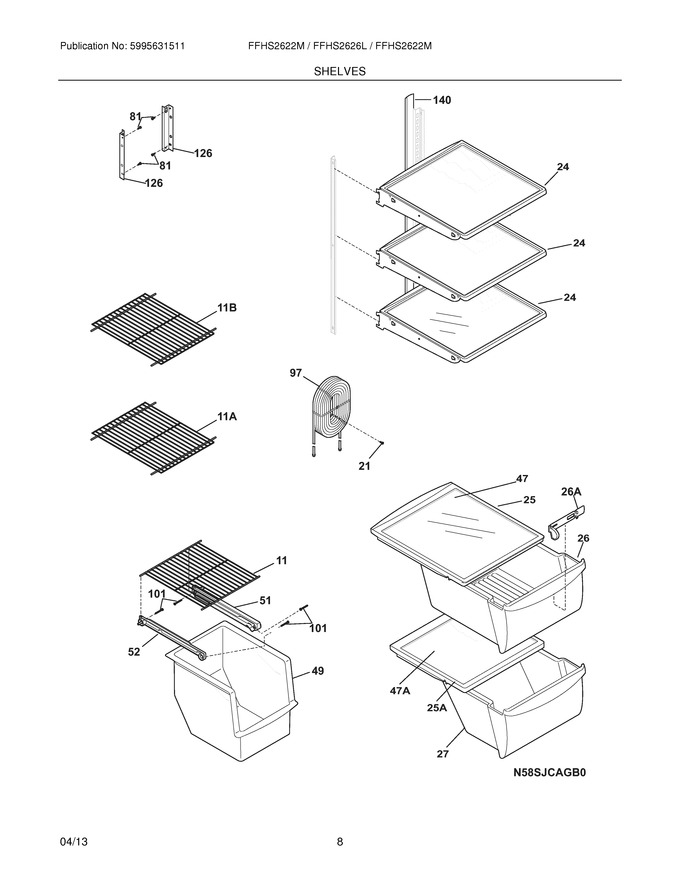

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657602		Shelf,flip Up ,wire				$ 86.45
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355256)				$ 170.63
25	240599301		Cover-crisper Pan,upper			Immediately	$ 94.38
26	240351061		Pan-crisper,upper			Immediately	$ 110.01
27	240351207		Pan-crisper,lower				$ 173.74
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220506		Water Tank   (Replaces: 240545310)				$ 94.98
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	240430501		Channel,wtr Tube Cover				$ 97.81
11A	241657512		Shelf,fixed ,freezer   (Replaces: 241657502)				$ 16.87
11B	241657514		Shelf,fixed ,upper ,freezer   (Replaces: 241657504)		Appelez-nous	-
25A	240350903		Cover-crisper Pan,lower			Immediately	$ 91.99
26A	240362201		Control-humidity				$ 69.46
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
NI	241595202		Clip-slide,crisper				$ 18.20
NI	240349801		Clip-slide,pan				$ 20.48
NI	240362101		Clip-slide,cover				$ 47.03
NI	242110281		Label-energyguide,energy Guide		Appelez-nous	-
NI	241868101		Air Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
