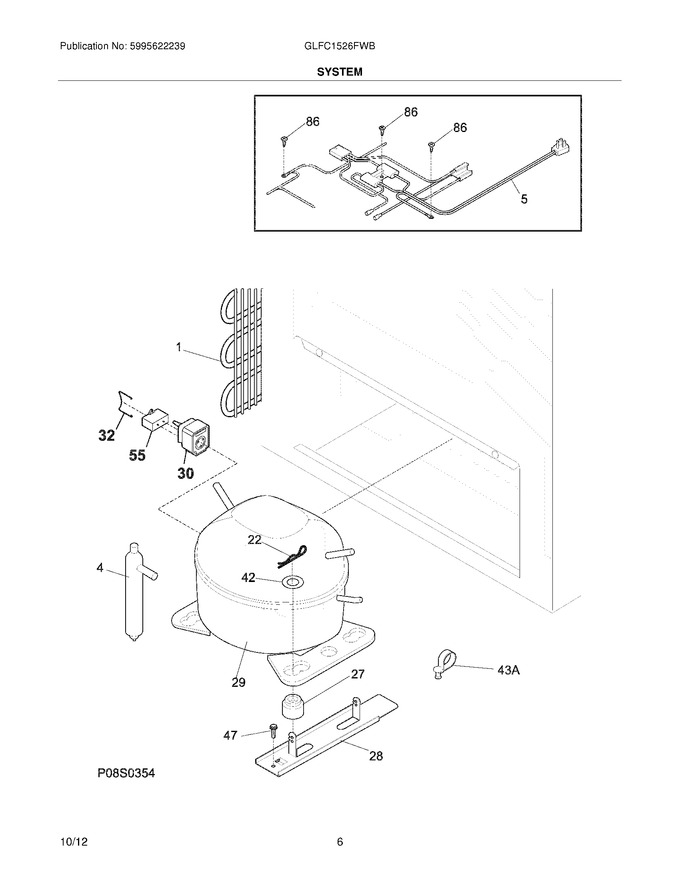

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925238 | Condenser |
|
$ 467.78 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 216987501) |
|
Immediately | $ 31.67 | ||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 297293302) |
|
$ 13.01 | |||||
| 28 | 5304464023 | Support,compressor |
|
- | |||||
| 30 | 216954235 | Controller,compressor (Replaces: 216954205) |
|
Immediately | $ 87.21 | ||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 42 | 216232701 | Washer,flat |
|
$ 2.10 | |||||
| 47 | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 13.01 | |||||
| 55 | 297286812 | Capacitor-run,250 Va ,12 Mf (Replaces: 297286802) |
|
Immediately | $ 11.78 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 43A | 5303212614 | Clip,harness Mount |
|
$ 2.88 | |||||
| F29 | 5304507765 | Compressor,w/o Electricals (Replaces: 297237300) |
|
Immediately | $ 677.23 | ||||
| F5 | 5304503686 | Harness,main (Replaces: 297346203) |
|
$ 86.24 |
