View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

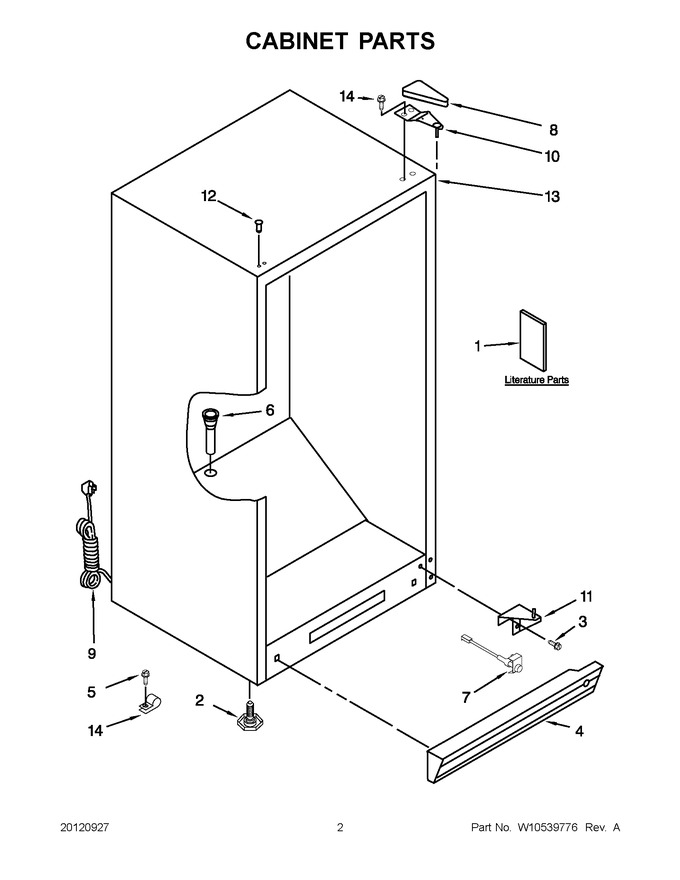

01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts
05 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10326807 | Energy Guide/tag |
|
- | |||||
| 1 | W10326799 | Owners Manual |
|
- | |||||
| 2 | WP3-82710-001 | Leg, Leveling (black) (Replaces: 3-82710-001) |
|
Immediately | $ 18.29 | ||||
| 3 | 1-80271-106 | Screw |
|
$ 12.03 | |||||
| 4 | 4-60461-001 | Trim, Toe Kick (white) |
|
$ 72.59 | |||||
| 5 | WP489478 | Screw (Replaces: 3-24004-107) |
|
$ 6.98 | |||||
| 6 | 3-60696-001 | Grommet, Drain |
|
$ 32.33 | |||||
| 7 | 3-82130-001 | Assembly, Power Warning Light Bracket |
|
$ 76.33 | |||||
| 8 | 3-80838-003 | Cover, Hinge (white) |
|
$ 4.50 | |||||
| 9 | 4-82399-001 | Cord, Power |
|
$ 52.24 | |||||
| 10 | 2-81016-105 | Assembly, Hinge (white) |
|
$ 37.06 | |||||
| 11 | 4-82693-002 | Hinge, Botto |
|
$ 72.12 | |||||
| 12 | WP2189000 | Plug, Door (white) (Replaces: 2189000) |
|
Immediately | $ 6.66 | ||||
| 13 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 14 | 3-25095-011 | Clamp, Tube |
|
- |
