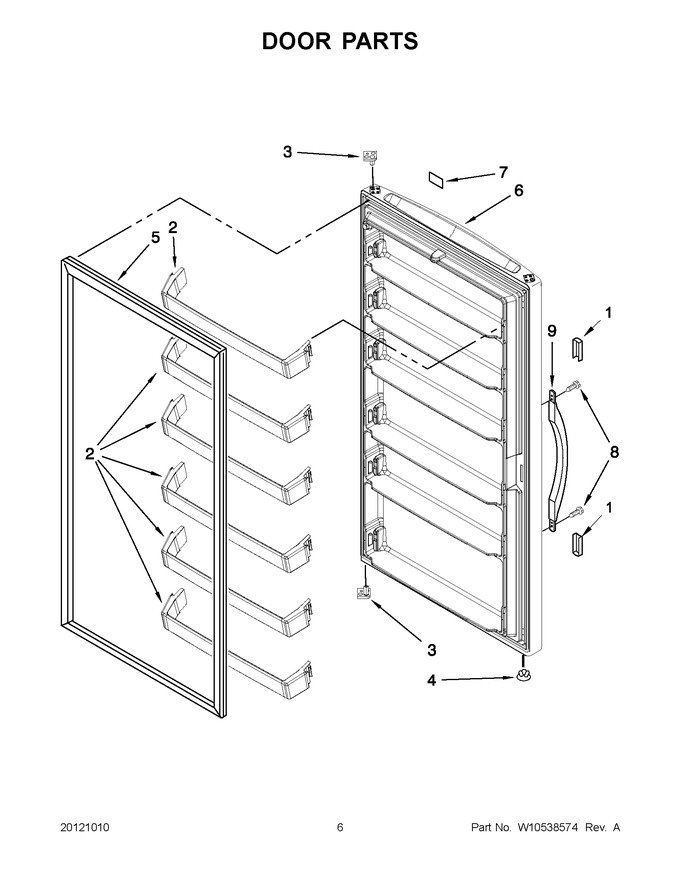

03 - Door Parts
04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2-82012-001 | Trim, Handle (white) |
|
$ 10.34 | |||||
| 2 | WP4-65451-001 | Rail, Door (Replaces: 4-65451-001) |
|
$ 85.58 | |||||
| 3 | 2-81124-001 | Stop, Door (natural) |
|
$ 31.15 | |||||
| 4 | 3-24898-007 | Plug, Vent |
|
$ 9.72 | |||||
| 5 | WP4-65151-004 | Gasket, Door (Replaces: 4-65151-004) |
|
$ 328.23 | |||||
| 6 | 4-82827-047 | Assembly, Door |
|
- | |||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 79.87 | ||||
| 8 | W11772394 | Screw (Replaces: 3-24004-091) |
|
Immediately | $ 10.94 | ||||
| 9 | 4-81902-001 | Handle (white) |
|
- |
