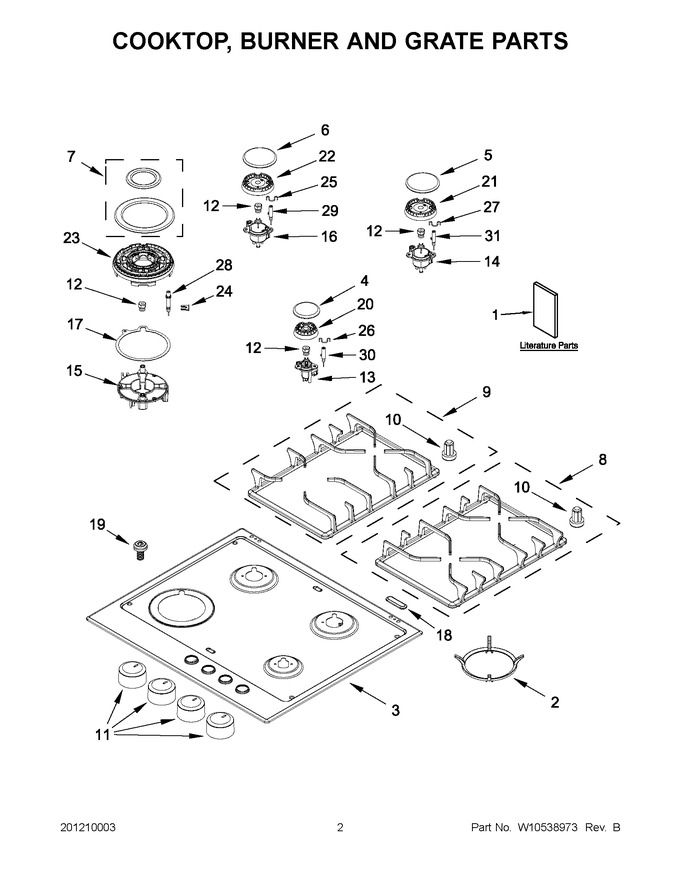

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10539012		Use And Care Guide		Appelez-nous	-
2	W11179758		Grate, Wok   (Replaces: W10483910)		Appelez-nous	-
3	W10483898		24 `` Stainless Cooktop		Appelez-nous	-
4	W10483939		Burner Cap Aux Right Front				$ 27.94
5	W10483940		Burner Cap Sr Right Rear				$ 30.53
6	W10483940		Burner Cap Sr Left Rear				$ 30.53
7	W10484283		Burner Cap 4-crown Outer				$ 31.19
7	W10484286		Burner Cap 4-crown Inner Left Front				$ 11.85
8	W10483909		Grate, Right Side				$ 77.95
9	W10483907		Grate, Left Side				$ 131.27
10	W10483912		Bumper, Grate				$ 14.25
11	W10483913		Knob, Control (black)		Appelez-nous	-
12	W10484298		Kit, Natural Gas Orifices		Appelez-nous	-
12	W10484296		Kit, Liquid Propane Orifices				$ 34.97
13	W10483915		Holder, Orifice Aux Right Front		Appelez-nous	-
14	W10483916		Holder, Orifice Sr Right Rear		Appelez-nous	-
15	W10483918		Holder, Orifice 4-crown Left Front		Appelez-nous	-
16	W10483916		Holder, Orifice Sr Left Rear		Appelez-nous	-
17	W10483933		Gasket, Burner 4-crown		Appelez-nous	-
18	W10483906		Trim, Screw Cover Cooktop				$ 17.17
19	W10484471		Screw, Cooktop		Appelez-nous	-
20	W10483936		Head, Burner Aux Right Front				$ 19.93
21	W10483937		Head, Burner Sr Right Rear				$ 24.26
22	W10483937		Head, Burner Sr Left Rear				$ 24.26
23	W10483938		Head, Burner 4-crown Left Front				$ 107.03
24	W10236998		Clip, Ignitor Left Front		Appelez-nous	-
25	W10236996		Clip, Ignitor Left Rear		Appelez-nous	-
26	W10236996		Clip, Ignitor Right Front		Appelez-nous	-
27	W10236996		Clip, Ignitor Right Rear		Appelez-nous	-
28	W10236997		Ignitor, Surface Left Front				$ 68.81
29	W10484335		Ignitor, Surface Left Rear				$ 17.94
30	W10484335		Ignitor, Surface Right Front				$ 17.94
31	W10484335		Ignitor, Surface Right Rear				$ 17.94
