SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

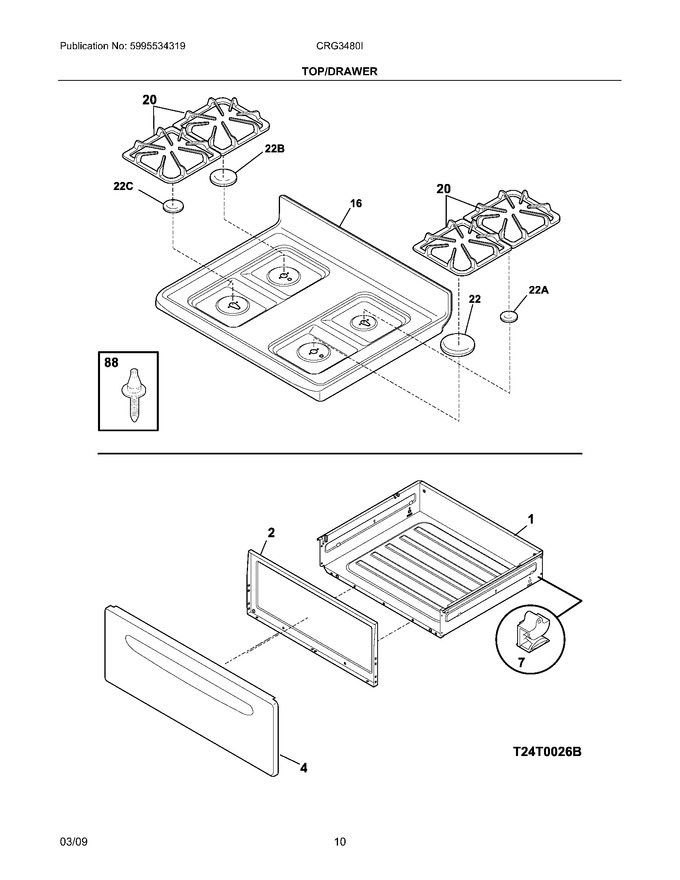

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	316403401		Panel,drawer ,white ,front				$ 92.51
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316202392		Main Top,white		Appelez-nous	-
20	316248507		Grate,gray ,(4)				$ 123.17
22	316438703		Cap-burner,14k ,choco Brown		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
22A	316438303		Cap,5k Burner ,gray				$ 47.62
22B	316438103		Cap,12k-burner ,gray				$ 54.50
22C	316527703		Cap,9.5k Burner ,gray ,medium				$ 43.66
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
