Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

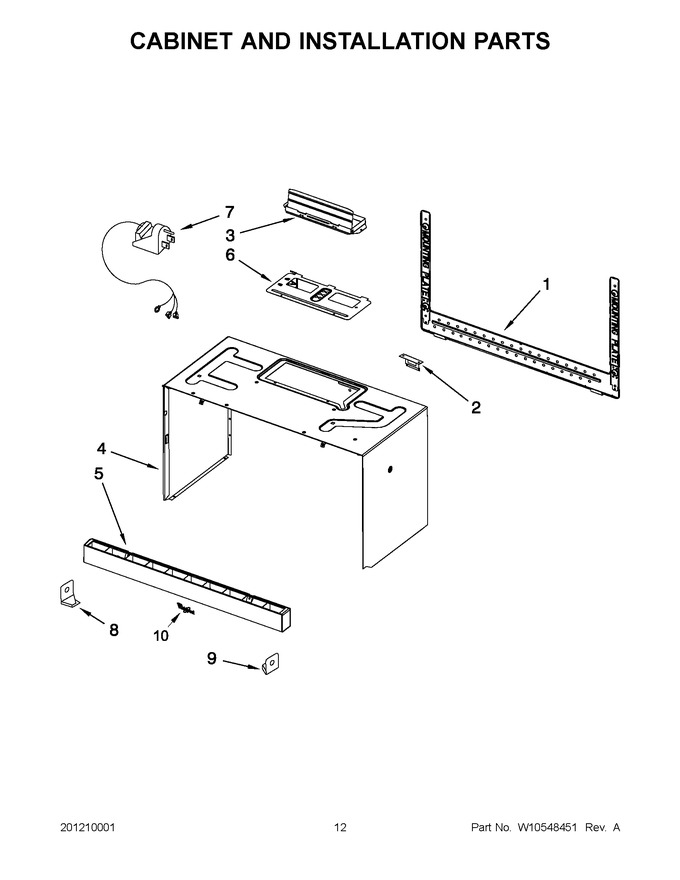

1	W11025649		Plate, Mounting   (Replaces: W10245177)			Immediately	$ 21.16
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 65.74
4	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 255.01
4	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 250.22
5	W10286326		Grille, Vent (black)		Appelez-nous	-
5	W10286318		Grille, Vent (stainless)		Appelez-nous	-
5	W10286322		Grille, Vent (white)		Appelez-nous	-
6	W10210832		Cover, Hood Fan Motor				$ 6.68
7	W10708076		Cord, Power   (Replaces: W10290787)				$ 18.48
8	W10810989		Vent Grid Holder, Left Side (black)   (Replaces: W10406307)				$ 8.76
8	W11026306		Vent Grid Holder, Left Side (white)   (Replaces: W10393278)			Immediately	$ 6.47
9	W10830163		Vent Grid Holder, Right Side (black)   (Replaces: W10406308)				$ 12.18
9	W10703282		Vent Grid Holder, Right Side (white)   (Replaces: W10393276)				$ 9.44
10	W11178521		Badge, Nameplate (white)   (Replaces: W10481434)			Immediately	$ 56.82
NI	8205948		Miscellaneous, Installation, Hardware				$ 23.06
NI	W10190018		Miscellaneous, Template, Upper			Immediately	$ 6.47
NI	WP8169704		Miscellaneous, 1/4-20x3`` Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10286351		Miscellaneous, Main Harness		Appelez-nous	-
NI	W10539840		Miscellaneous, Ground Wire To Connect Pcb   (Replaces: 8205696)				$ 21.50
NI	W10508634		Miscellaneous, Wire, High Voltage		Appelez-nous	-
NI	W10245226		Miscellaneous, Hdlmp/tt Wire Assembly		Appelez-nous	-
NI	W10419223		Miscellaneous, Inverter Cable P23 To Cn7201 Inverter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
