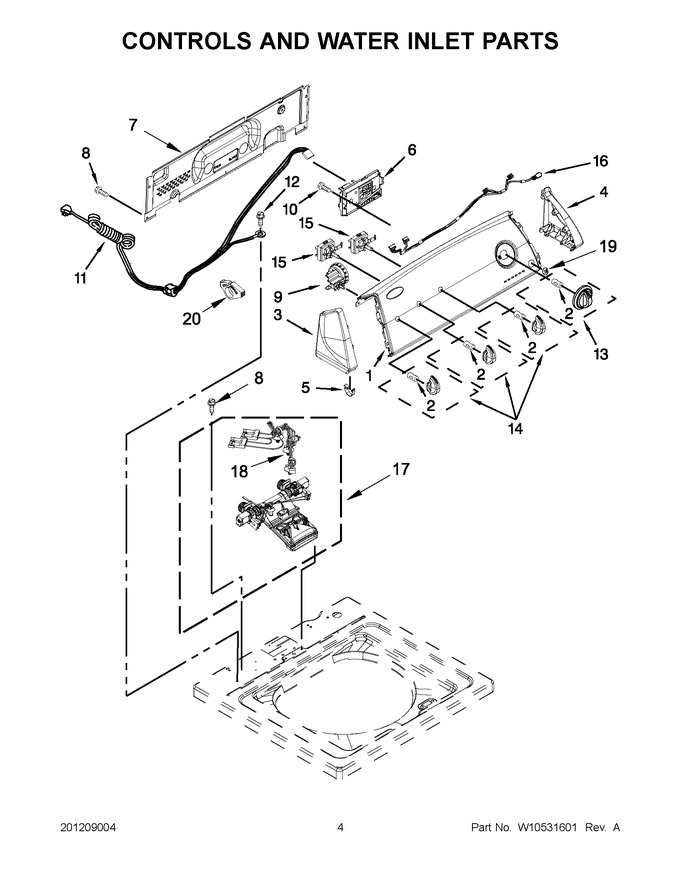

01 - Top And Cabinet Parts


02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251314		Panel, Console				$ 208.56
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
4	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 17.40
6	W10480177		Control Unit Assembly, Machine & Motor			Immediately	$ 265.48
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10268911		Switch, Water Level   (Replaces: W10268911)			Immediately	$ 190.65
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10525194)				$ 163.41
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W10034750		Knob, Timer (white/metallic)				$ 28.27
14	W10034380		Knob, Control (white/metallic)				$ 25.06
15	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 190.47
16	W10291174		Harness, Upper				$ 253.35
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10423125)			Immediately	$ 94.00
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
19	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 76.00
20	WPW10663966		Clamp, Hose   (Replaces: W10348582)				$ 224.26
