SELECT A DIAGRAM

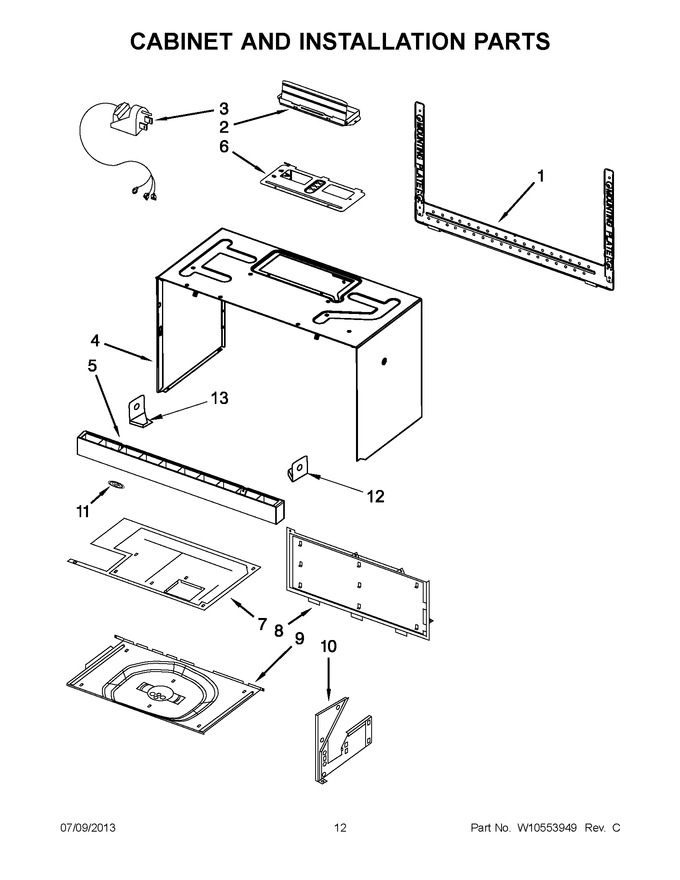

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10245177)			Immediately	$ 21.16
2	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 65.74
3	8206388		Cord, Power				$ 78.08
4	WPW10245176		Case, Outer (black)   (Replaces: W10245176)				$ 198.23
5	W10245216		Grille, Vent (stainless)				$ 124.00
5	W10245218		Grille, Vent (black)				$ 89.96
6	W10210832		Cover, Hood Fan Motor				$ 6.68
7	W10248268		Assembly, Top Plate		Appelez-nous	-
8	W10248267		Assembly, Back Plate		Appelez-nous	-
9	W10249318		Assembly, Bottom Plate		Appelez-nous	-
10	W10248279		Assembly, Right Plate		Appelez-nous	-
11	W11178521		Nameplate (grey)   (Replaces: W10481433)			Immediately	$ 56.82
12	W10810989		Holder, Vent Right Side (black)   (Replaces: W10406307)				$ 8.76
12	W10703282		Holder, Vent Right Side (white)   (Replaces: W10393276)				$ 9.44
13	W10830163		Holder, Vent Left Side (black)   (Replaces: W10406308)				$ 12.18
13	W11026306		Holder, Vent Left Side (white)   (Replaces: W10393278)			Immediately	$ 6.47
NI	W10553868		Miscellaneous, Ground Wire, Filter		Appelez-nous	-
NI	W10553852		Miscellaneous, Harness, Wire Turntable Motor And Hood Lamp		Appelez-nous	-
NI	8205948		Miscellaneous, Installation, Hardware				$ 23.06
NI	W10190020		Miscellaneous, Template, Upper				$ 56.21
NI	WP8169704		Miscellaneous, 1/4-20x3`` Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10553872		Miscellaneous, Harness, Main		Appelez-nous	-
NI	W10539840		Miscellaneous, Harness, Pcba Ground Wire				$ 21.50
