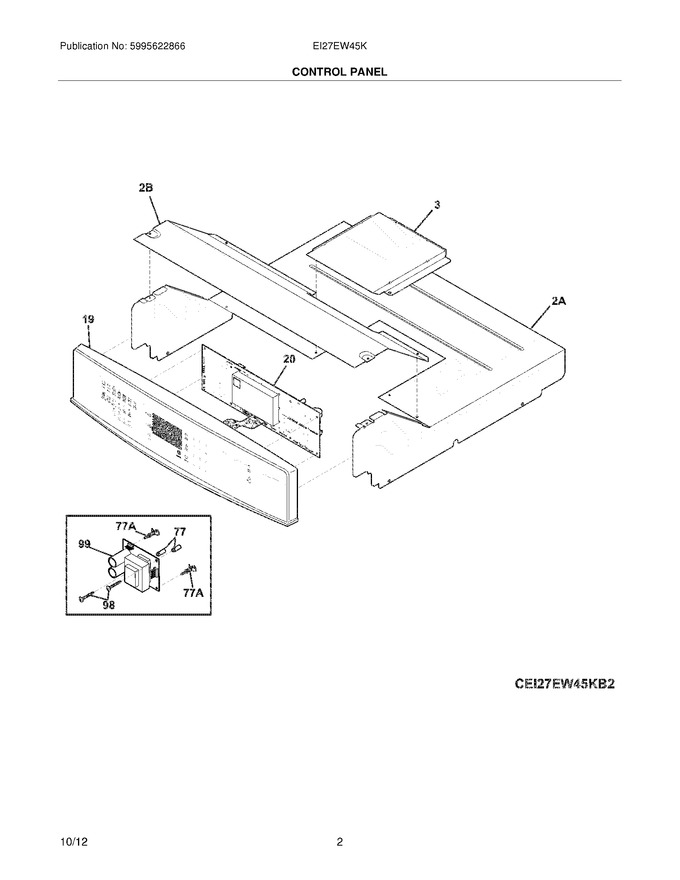

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box,fan Service |
|
- | |||||
| 77 | 318293702 | Spacer,control |
|
$ 16.22 | |||||
| 98 | 5304401490 | Screw,6-18 X 1 ,(2) |
|
- | |||||
| 2A | 318257306 | Shield,oven Top |
|
- | |||||
| 2B | 318260105 | Cover,box |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F19 | 318280487 | Control Panel Assy.,glass ,white ,w/membrane |
|
- | |||||
| F20 | 316576657 | Controller,electronic ,es630 |
|
- | |||||
| F99 | 316535201 | Board,power Supply ,8v |
|
$ 349.42 | |||||
| FNI | 318572780 | Harness,wiring ,main ,control Panel |
|
- | |||||
| NI | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 |
