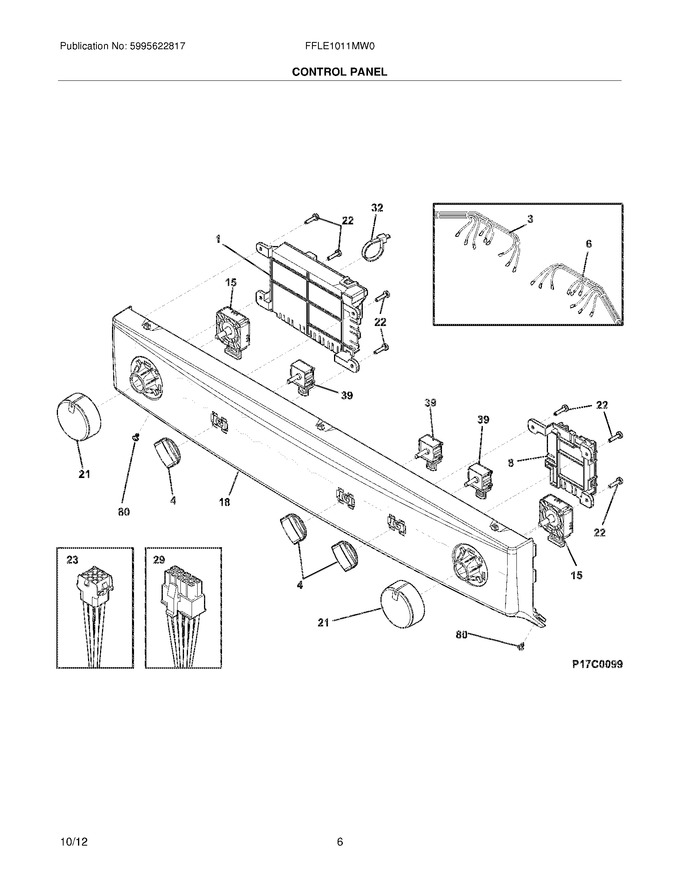

07 - Control Panel
09 - Lower Cabinet/top
11 - Motor/tub
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137275300 | Control Board,main ,w/housing |
|
- | |||||
| 4 | 5304504886 | Knob,switch (Replaces: 137191300) |
|
$ 68.20 | |||||
| 18 | 137518410 | Console,decorated ,white |
|
$ 205.22 | |||||
| 21 | 137489800 | Knob, Cycle Selector |
|
$ 50.66 | |||||
| 22 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 32 | 5304464772 | Cable Tie,5.60 Inch ,plastic (Replaces: 5303321209) |
|
$ 10.63 | |||||
| 80 | 134402900 | Screw,phillips ,6-19 X 0.650 |
|
$ 29.77 | |||||
| 39No. | 137052500 | Switch,option 3 Pos |
|
$ 50.00 | |||||
| 3No. | 137329200 | Wiring Harness,lc Dryer |
|
$ 121.46 | |||||
| 6No. | 137156200 | Harness,ui, Washer, Lc |
|
$ 119.70 | |||||
| 8No. | A00537602 | Pc Board,communication ,w/housing (Replaces: 137332702) |
|
$ 205.05 | |||||
| F15 | 137493300 | Switch,pts Cycle ,8 Position |
|
$ 60.96 | |||||
| F23 | 137161400 | Harness,main, Lc |
|
$ 225.07 | |||||
| F29 | 5304517938 | Wiring Harness,lc Dryer ,electric (Replaces: 137418900) |
|
$ 105.54 |
