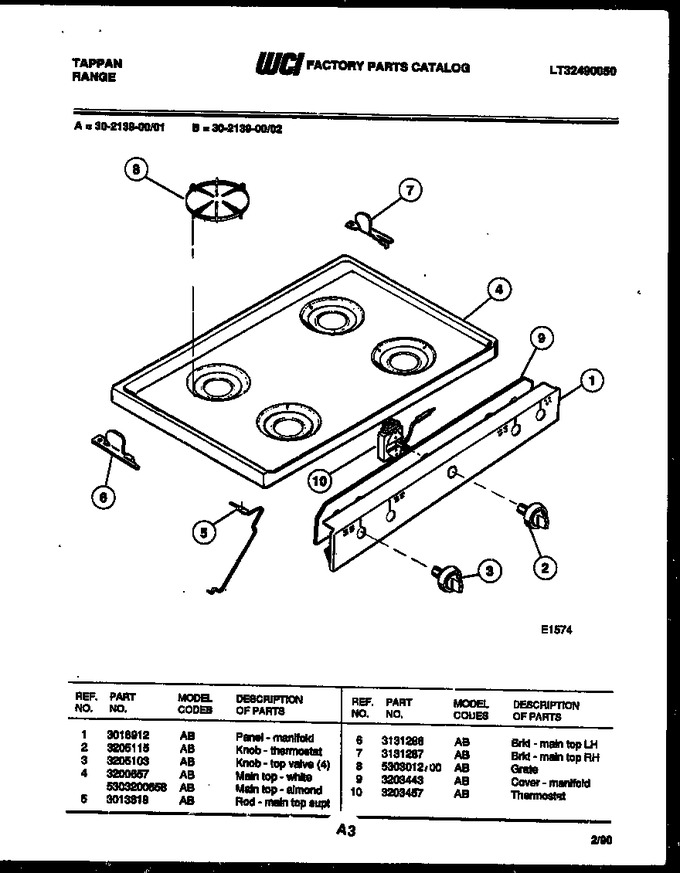

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016912 | Panel - Manifold |
|
- | |||||
| 2 | 3205115 | Knob, Thermostat |
|
- | |||||
| 3 | 3205103 | Knob, Top Valve, (4) |
|
- | |||||
| 4 | 5303200658 | Main Top, Almond |
|
- | |||||
| 4 | 3200657 | Main Top, White |
|
- | |||||
| 5 | 3013818 | Rod - Maintop Supt. |
|
- | |||||
| 6 | 3131286 | Brkt Main Top Lh |
|
- | |||||
| 7 | 3131287 | Brkt Main Top Rh |
|
- | |||||
| 8 | 5303012700 | Grate |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 3203457 | Thermostat |
|
- |
