Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35001235 Door-outer Ring Special Order $ 135.39

2 35001129 Bracket-hinge (heater) Appelez-nous -
3 35001235 Door-outer Ring Special Order $ 135.39

4 555555 Window   (Replaces: 35001182) Special Order $ 151.94

5 35001250 Seal-door Special Order $ 95.43

6 W10177441 Holder-glass Appelez-nous -
7 35001120 Support-hinge Special Order $ 27.55

8 W10177442 Hinge, Door Appelez-nous -
9 35001127 Bearing-hinge Special Order $ 6.14

10 6001-001773 Screw-machine In-Stock Immediately $ 2.39

11 6002-000213 Screw In-Stock Immediately $ 0.93

12 35001111 Catch-door Special Order $ 16.29

13 6002-000525 Screw Special Order $ 0.85

14 6002-000475 Screw Special Order $ 0.85

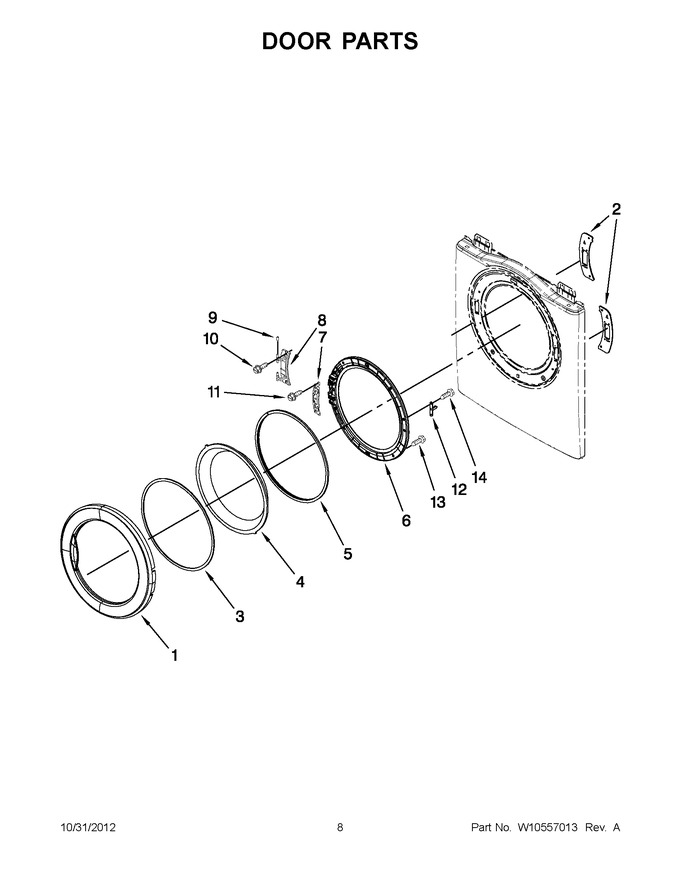

    View Diagram in Separate Window     Print Icon   Print Part List
