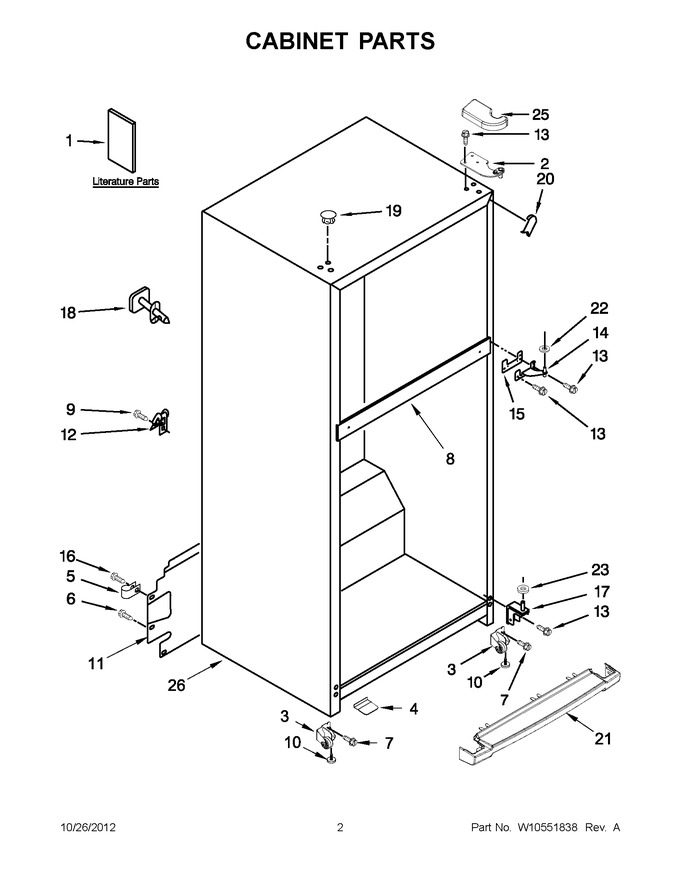

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469940 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10461975 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Repair Manuals |
|
$ 30.30 | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 11.95 | |||||
| 3 | WPW10359255 | Roller Assembly, Front Right Side (Replaces: W10359255) |
|
Immediately | $ 86.27 | ||||
| 3 | WPW10359256 | Roller Assembly, Front Left Side (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | WPW10353932 | Endcap, Grille (grey) (Replaces: W10353932) |
|
$ 73.29 | |||||
| 4 | WPW10339257 | Endcap, Grille (white) (Replaces: W10339257) |
|
$ 73.22 | |||||
| 5 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 10.06 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | N/P | Rail Center (not Serviced) |
|
- | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 11 | W10425028 | Cover, Unit |
|
- | |||||
| 12 | 489348 | Clamp, Tube |
|
- | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 78.88 | ||||
| 15 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 9.59 | |||||
| 16 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.01 | ||||
| 17 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 7.62 | ||||
| 18 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | WPW10520307 | Hole Plug (grey) (Replaces: 2254506) |
|
Immediately | $ 6.47 | ||||
| 19 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 19.60 | |||||
| 20 | W10851579 | Corner Filler (grey) (Replaces: W10283961) |
|
Immediately | $ 6.47 | ||||
| 20 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 7.04 | |||||
| 21 | WPW10300129 | Grille (white) (Replaces: W10300129) |
|
$ 93.90 | |||||
| 21 | WPW10353941 | Grille (grey) (Replaces: W10353941) |
|
$ 131.34 | |||||
| 22 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 23 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 25 | W10331654 | Cover, Hinge (white) |
|
- | |||||
| 25 | W10353947A | Cover, Hinge (grey) (Replaces: W10353947) |
|
$ 12.24 | |||||
| 25 | W10353950A | Cover, Hinge (grey) (Replaces: W10353950) |
|
$ 20.90 | |||||
| 25 | W10331560A | Cover, Hinge (white) (Replaces: W10331560) |
|
$ 11.52 | |||||
| 26 | N/P | Cabinet (not A Serviceable Part) |
|
- |
