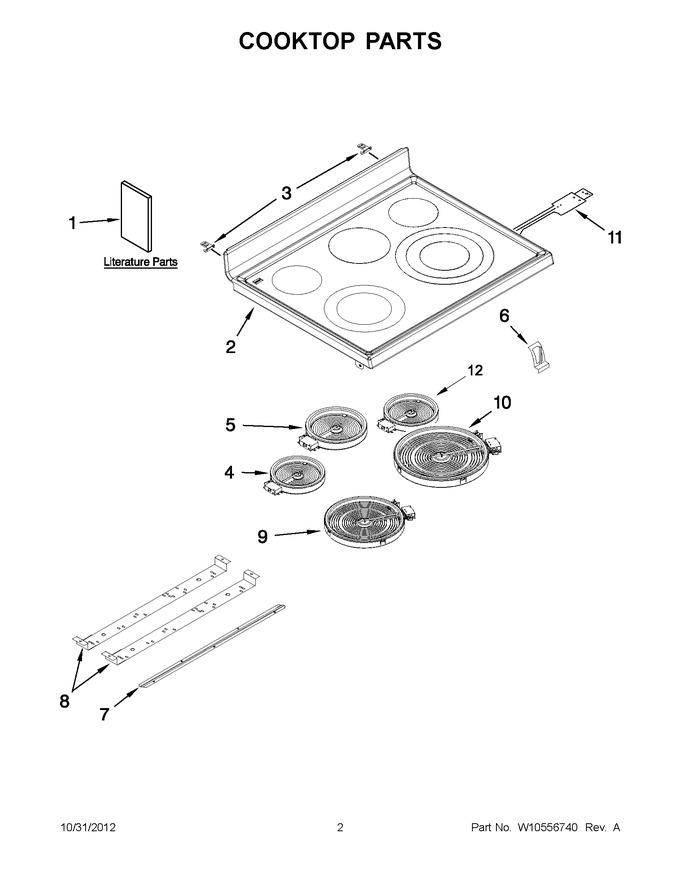

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10344641		Installation Instructions		Appelez-nous	-
1	W10346735		Tech Sheet		Appelez-nous	-
1	W10328277		Use & Care Guide		Appelez-nous	-
2	W10350539		Cooktop (black)				$ 417.27
3	W10354984		Hinge Bracket Cooktop		Appelez-nous	-
4	W10350483		Element 6`` 1200 Watts Left Rear				$ 112.96
5	W10350493		Element, Warmer 100 Watts Center Rear				$ 106.07
6	W10350545		Clip, Element				$ 32.32
7	W10350543		Bracket, Support Cooktop, Front		Appelez-nous	-
8	W10350542		Channel, Element Support		Appelez-nous	-
9	W11517959		Element, Dual 6/9`` Radiant 3000 Watts Left Front   (Replaces: W10350485)			Immediately	$ 121.00
10	W10350491		Element, 9/12`` Dual Radiant 1200/1800 Watts Right Front		Appelez-nous	-
11	W10347003		Bracket, Support		Appelez-nous	-
12	W10350483		Element 6`` 1200 Watts Right Rear				$ 112.96
