01 - Cooktop Parts
02 - Control Panel Parts

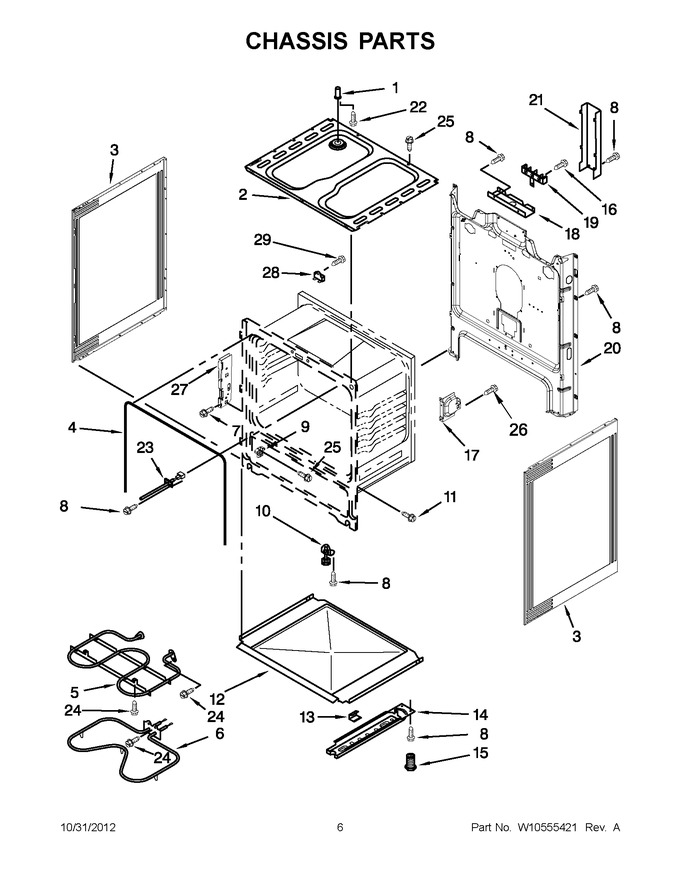

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Tube, Vent (Replaces: 3169143) |
|
$ 104.30 | |||||
| 2 | W11699791 | Box, Burner (Replaces: W10209613) |
|
$ 262.30 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 178.50 | ||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 202.43 | |||||
| 4 | W11542153 | Seal, Door (Replaces: W10129032) |
|
Immediately | $ 52.72 | ||||
| 5 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 201.01 | ||||
| 6 | WPW10308477 | Element, Bake (2400w) (Replaces: W10308477) |
|
Immediately | $ 74.56 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 9 | W10763667 | Glide, Drawer (Replaces: W10317898) |
|
Immediately | $ 113.06 | ||||
| 10 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 33.30 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 12 | WP8054068 | Retainer, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 13 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 14 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 14 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 15 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 16 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 17 | W10404688 | Bracket, Oven Support (Replaces: W10355173) |
|
$ 17.69 | |||||
| 18 | W11763591 | Bracket, Service (non-serviceable) (Replaces: 3186034) |
|
- | |||||
| 19 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 33.68 | ||||
| 20 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 21 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 22 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 23 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 114.85 | ||||
| 24 | WP3196174 | Screw, Grounding (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 25 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 27 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 10.48 | ||||
| 28 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 29 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 61.09 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 115.11 |
