SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop

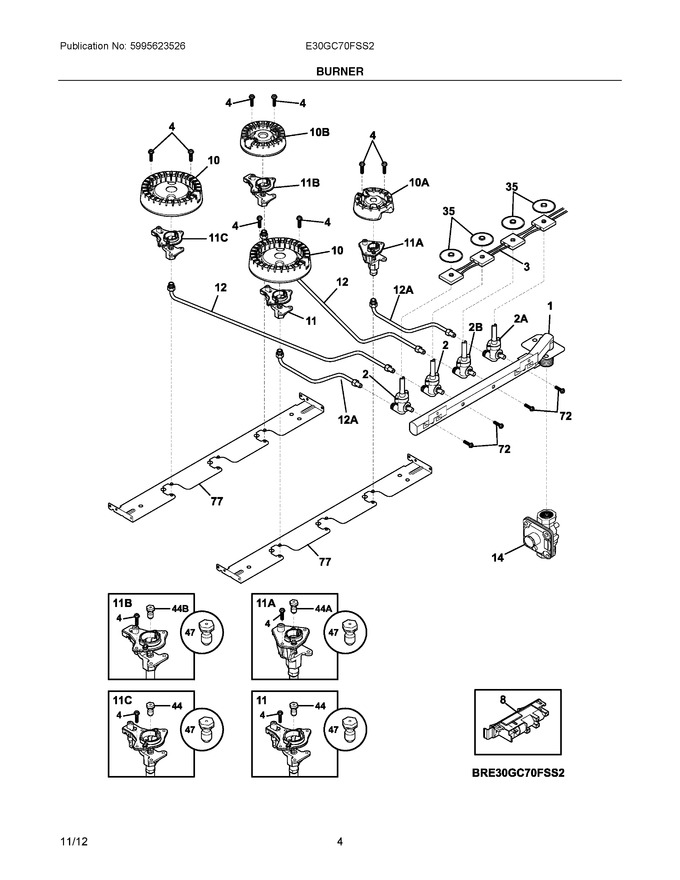

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177020		Manifold Pipe		Appelez-nous	-
2	318233940		Valve, Burner, 18.2k				$ 162.23
3	318232604		Wiring Harness, W/igntr Switch				$ 292.73
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	5304505695		Module, Spark   (Replaces: 316135702)			Immediately	$ 68.16
10	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
11	316543203		Ignitor/orifice Assy., Top Burner, 17k, W/holder				$ 12.20
12	318560700		Tube, Burner, Lf & Lr, (2)		Appelez-nous	-
14	5308007974		Regulator, Pressure				$ 309.02
35	318146301		Bushing				$ 34.34
44	316527509		Orifice, Burner, 18.2k				$ 19.85
47	318565423		Conversion Kit, Lp		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318564100		Bracket, Transverse		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11C	316543202		Ignitor/orifice Assy., Top Burner, Right Front, 16k, W/holder, Tube			Immediately	$ 11.76
12A	318560702		Tube, Burner, Rf & Rr, (2)				$ 45.73
2A	318233900		Valve, Top Burner, 5000 Btu				$ 161.53
2B	318233910		Valve, Top Burner, 9500 Btu				$ 132.56
44A	316527504		Orifice, Top Burner, 5k				$ 22.68
44B	316527500		Orifice, Top Burner, 9.5k				$ 21.40
NI	08011955		Screw, 10-24 X 0.375, Square Drive			Immediately	$ 9.36
NI	318024210		Deflector, Spark Module		Appelez-nous	-
NI	318199779		Wiring Harness, Ignitor				$ 129.10
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NIA	5303323137		Screw, 8-32 X 1/4   (Replaces: 5303305528)				$ 11.88

    View Diagram in Separate Window       Print Part List
