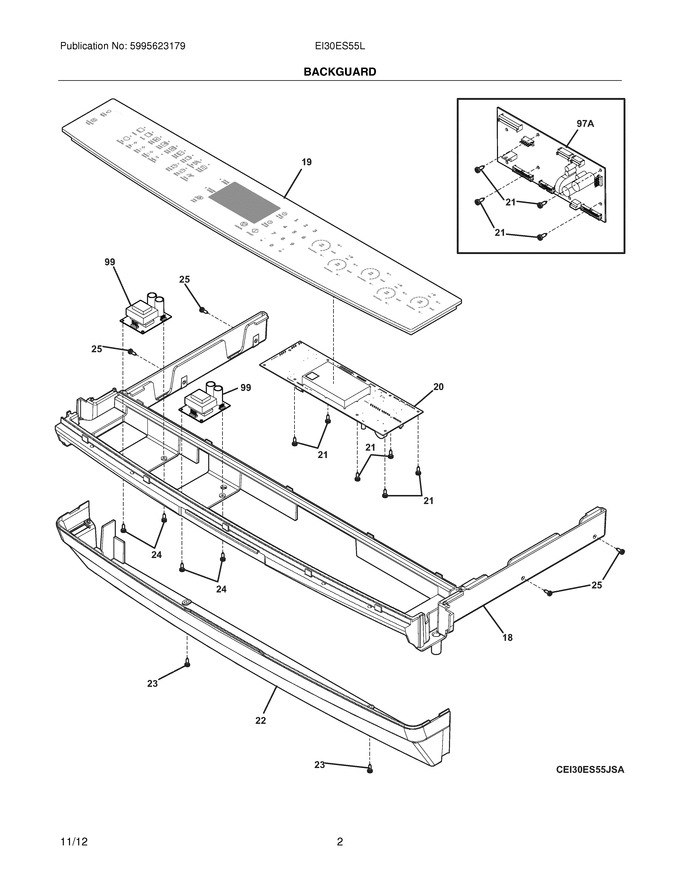

03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
10 - Wiring Diagram
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 318900301 | Subframe,control |
|
$ 231.53 | |||||
| 21 | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| 22 | 318905004 | Panel,service ,black |
|
$ 414.44 | |||||
| 23 | 5304401361 | Screw,8-18 X 0.750 ,black |
|
$ 9.71 | |||||
| 24 | 5303307980 | Screw,8-32 X 0.437 ,(4) |
|
Immediately | $ 14.18 | ||||
| 25 | 5303131801 | Screw, 10 X 3/8 |
|
- | |||||
| F19 | 318923701 | Control Panel,assembly ,black ,w/controls |
|
$ 1,109.85 | |||||
| F20 | 316576611 | Controller,electronic ,es630 |
|
$ 461.11 | |||||
| F97A | 316576431 | Board,power ,uib |
|
$ 324.74 | |||||
| F99 | 316535201 | Board,power Supply ,8v |
|
$ 349.42 | |||||
| FNI | 318578306 | Harness,wiring ,power Supply |
|
$ 131.46 | |||||
| FNI | 318578320 | Harness,wiring ,controller ,to Uib |
|
- | |||||
| FNI | 318578329 | Harness,wiring ,timer |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
