View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum

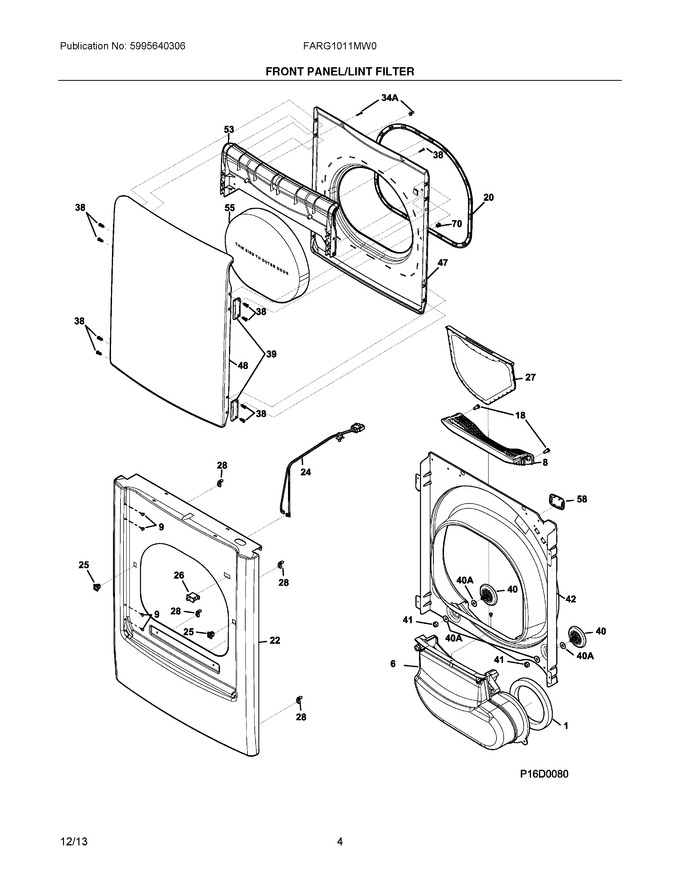

03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137068200 | Seal, Air Duct |
|
$ 14.81 | |||||
| 6 | 134710705 | Duct, Air, Gray |
|
$ 208.95 | |||||
| 8 | 137554110 | Cover, Lint Housing (Replaces: 134701310) |
|
Immediately | $ 111.80 | ||||
| 9 | 131633200 | Plug, White |
|
$ 15.90 | |||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 137553402 | Gasket, Door Seal, Gray (Replaces: 134720902) |
|
$ 87.12 | |||||
| 22 | 137365910 | Panel, Front, Fsd |
|
$ 190.42 | |||||
| 24 | 137364800 | Harness, Door Switch |
|
- | |||||
| 25 | 131658800 | Door Catch, Upper |
|
Immediately | $ 68.38 | ||||
| 26 | 134813600 | Switch, Door |
|
Immediately | $ 43.09 | ||||
| 27 | 134701410 | Filter, Lint, Complete |
|
Immediately | $ 74.14 | ||||
| 28 | 137034500 | Clip, Mounting, Cabinet Front |
|
$ 43.24 | |||||
| 38 | 137361500 | Screw 8-18x0.711 Combo |
|
$ 7.79 | |||||
| 39 | 137365610 | Hinge, Piano Style |
|
- | |||||
| 40 | 5304523155 | Roller, Wheel, Complete Asmy (Replaces: 134715900) |
|
Immediately | $ 77.99 | ||||
| 41 | 134716800 | Nut, 3/8-16 |
|
$ 2.98 | |||||
| 42 | 134696110 | Bulkhead, Panel, Front |
|
$ 239.93 | |||||
| 47 | 137026610 | Door, Inner, Fsd, White |
|
- | |||||
| 48 | 137026510 | Door, Outer, Fsd, White |
|
$ 214.36 | |||||
| 53 | 137274200 | Handle, Door, Fsd |
|
$ 69.09 | |||||
| 55 | 137365800 | Spacer, Fsd Door |
|
- | |||||
| 58 | 137576600 | Plug, Light Hole (Replaces: 131870700) |
|
Immediately | $ 14.18 | ||||
| 70 | 134417500 | Plug, Rectangular, White |
|
$ 16.22 | |||||
| 34A | 137285100 | Screw, Pan Head, #8-18x.750 |
|
$ 17.53 | |||||
| 40A | 134716700 | Washer, Flat |
|
$ 2.12 | |||||
| NIA | 134716200 | Retainer, Roller Wheel, Assembly |
|
$ 3.12 | |||||
| NIA | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 | ||||
| NIA | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 |
