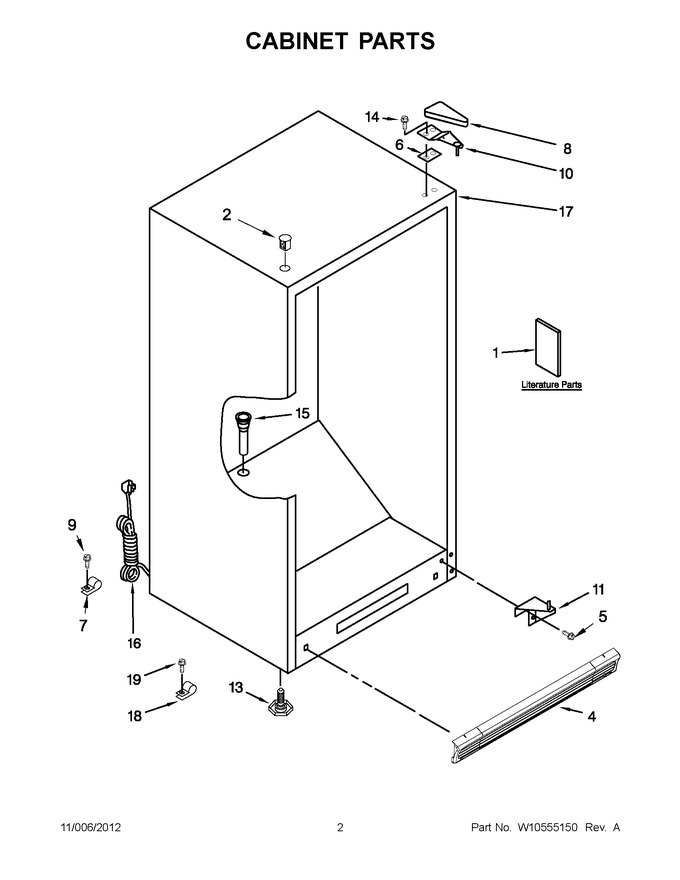

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326806		Energy Guide		Appelez-nous	-
1	1-82514		Wiring Diagram		Appelez-nous	-
1	W10326797		Owners Manual		Appelez-nous	-
2	3-23995-014		Plastic, Grommet		Appelez-nous	-
4	WP4-60461-005		Trim, Toe Kick (white)   (Replaces: 4-60461-005)				$ 100.70
5	1-80271-106		Screw				$ 12.03
6	4390489		Shim   (Replaces: 2-81312)				$ 6.26
7	3-25095-011		Clamp, Tube		Appelez-nous	-
8	3-80838-003		Cover, Hinge (white)				$ 4.50
9	WP489478		Screw   (Replaces: 3-80675-105)				$ 6.98
10	2-81016-105		Hinge, Top (white)				$ 37.06
11	4-82693-002		Hinge, Bottom				$ 72.12
13	WP3-82710-001		Leg, Leveler (black)   (Replaces: 3-82710-001)			Immediately	$ 18.29
14	W11233072		Screw   (Replaces: 3-80732-014)			Immediately	$ 12.62
15	3-60696-001		Grommet, Drain				$ 32.33
16	4-82399-001		Cord, Power				$ 52.24
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	1-80231-101		Clamp, Tube		Appelez-nous	-
19	681390		Screw   (Replaces: 1-80257-102)				$ 11.75
