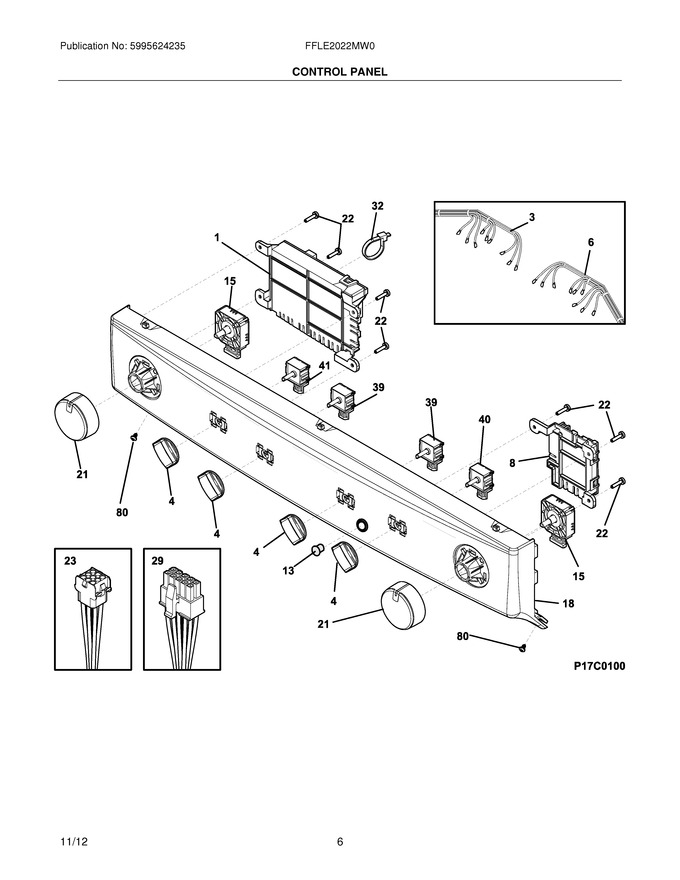

07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	137329400		Wiring Harness,dryer ,lc Upper				$ 107.02
4	5304504886		Knob,switch   (Replaces: 137191300)				$ 68.20
6	137156400		Harness,upper Lc, Wash				$ 87.31
18	137518513		Console, Decorated,control Panel		Appelez-nous	-
21	137489800		Knob, Cycle Selector				$ 50.66
22	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
32	5304464772		Cable Tie,5.60 Inch ,plastic   (Replaces: 5303321209)				$ 10.63
80	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
F1	137275301		Control Board,main ,w/housing				$ 120.94
F13	134040800		Switch,on/off ,white ,round				$ 65.92
F15	137493400		Switch,pts Cycle Selec ,9 Pos			Immediately	$ 32.38
F29	5304517938		Wiring Harness,lc Dryer ,electric   (Replaces: 137418900)				$ 105.54
F39	137205200		Switch,rotary, 2 Pos			Immediately	$ 43.24
F40	137052700		Switch,rotary, 5 Pos				$ 48.20
F41	137261000		Switch,rotary, 4 Pos				$ 102.65
F8	A00537603		Pc Board,communication ,w/housing   (Replaces: 137332703)				$ 222.20
NI	137367100		Wiring Harness,main				$ 280.09
