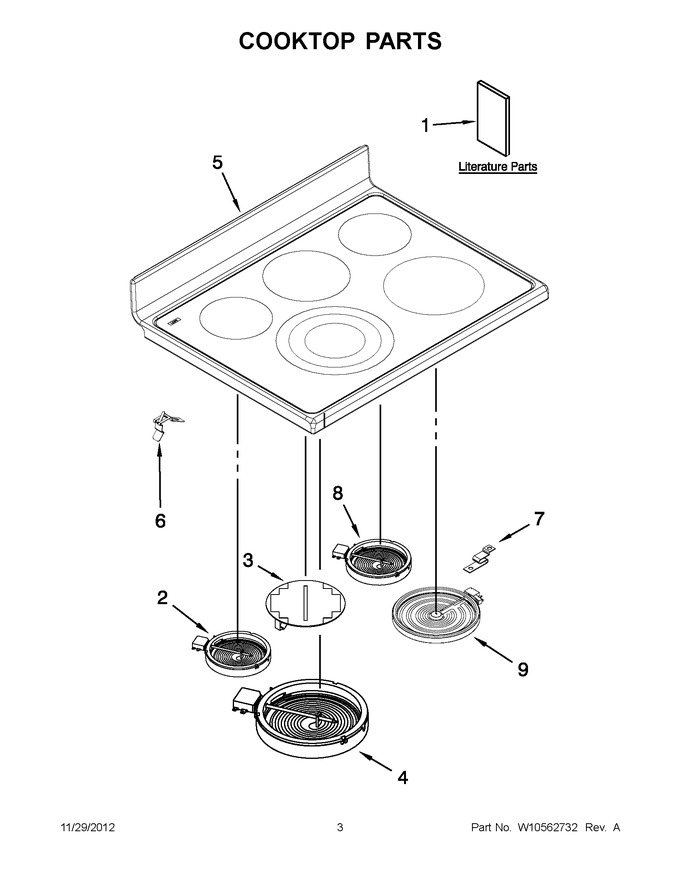

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Internal Oven Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10430934 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safer Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10430958 | Instructions, Installation |
|
- | |||||
| 1 | W10312314 | Tech Sheet |
|
- | |||||
| 2 | W11171119 | Element, Ribbon (1200w) (left Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 3 | WP9762851 | Element, Warm Zone (120v) (Replaces: 9762851) |
|
Immediately | $ 248.88 | ||||
| 4 | W11101459 | Element, Triple (2700w) (left Front) (Replaces: W10259005) |
|
Immediately | $ 194.15 | ||||
| 5 | W10336327 | Cooktop (black) (Replaces: W10260150) |
|
$ 564.75 | |||||
| 5 | W10336336 | Cooktop (white) (Replaces: W10299111) |
|
$ 550.21 | |||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 7 | WPW10260946 | Support, Element (Replaces: W10260946) |
|
$ 115.80 | |||||
| 8 | WPW10270604 | Element, Surface (700w) (right Rear) (Replaces: W10270604) |
|
Immediately | $ 191.56 | ||||
| 9 | WPW10251107 | Element, Hyper (3200w) (right Front) (Replaces: W10251107) |
|
$ 306.51 |
