01 - Cooktop Parts


02 - Backguard Parts

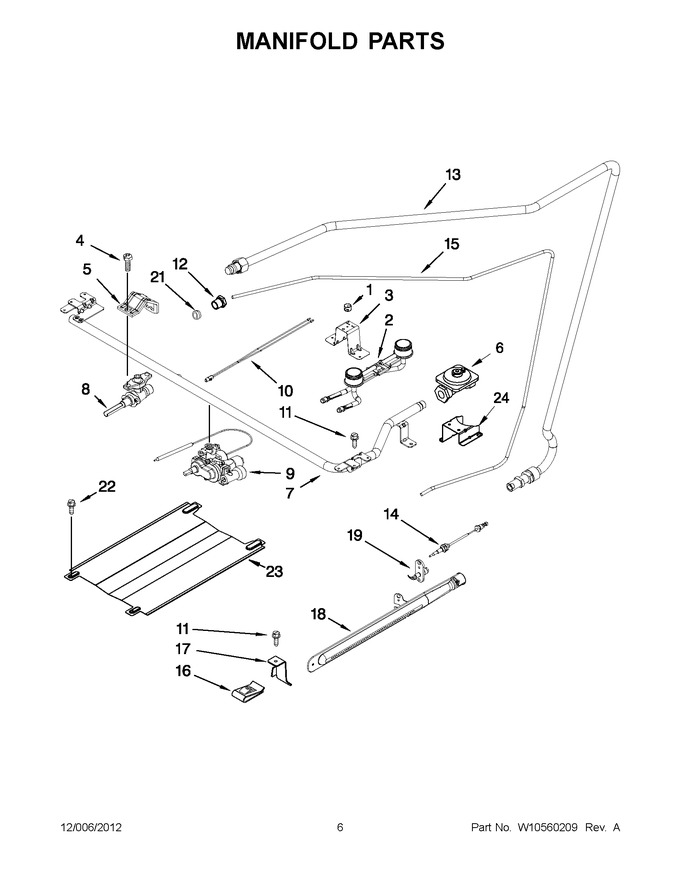

03 - Manifold Parts


04 - Chassis Parts


05 - Oven And Broiler Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10128110		Cap, Pilot		Appelez-nous	-
2	W10119798		Burner, Dual		Appelez-nous	-
3	W10119802		Bracket, Burner		Appelez-nous	-
4	98017517		Screw		Appelez-nous	-
7	W10119804		Pipe, Manifold		Appelez-nous	-
8	W10121580		Valve, Burner		Appelez-nous	-
9	WPW10121631		Thermostat   (Replaces: W10121631)				$ 267.78
10	W10119799		Tube, Pilot		Appelez-nous	-
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	98005514		Nut		Appelez-nous	-
13	W10121620		Tubing, Oven (tstat To Burner)		Appelez-nous	-
14	WPW10155906		Thermocouple Pilot   (Replaces: W10155906)				$ 255.98
15	WP98004310		Tubing, Thermostat To Pilot   (Replaces: 98004310)				$ 94.03
16	98009179		U-nut				$ 12.02
17	98013314		Locator, Burner		Appelez-nous	-
18	W10116419		Burner, Oven		Appelez-nous	-
19	WPW10085400		Pilot, Thermostat   (Replaces: W10085400)				$ 85.42
21	98007116		Sleeve, 3/16 Ball		Appelez-nous	-
22	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
23	98015099		Spread, Flame (bake)				$ 243.31
24	W10434312		Bracket, Regulator		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10121808		Kit, Lp Conversion		Appelez-nous	-
