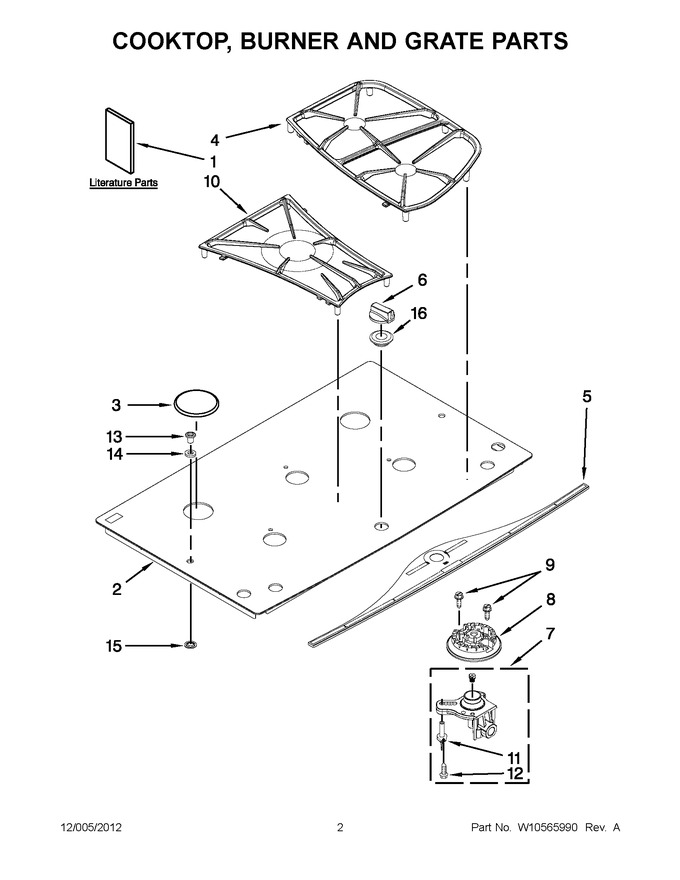

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves And Switches
03 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203804 | Installation Instructions |
|
- | |||||
| 1 | W10204447 | Use & Care Guide |
|
- | |||||
| 1 | W10210795 | Wiring Diagram |
|
- | |||||
| 1 | 9762761 | Tips, Safer Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10204903 | Cooktop (oiled Bronze) |
|
- | |||||
| 2 | W10204901 | Cooktop (black) |
|
- | |||||
| 3 | 7504P204-60 | Cap, Burner (black) (center) |
|
- | |||||
| 3 | WP8284669 | Cap, Burner (black) (left Rear & Right Rear) (Replaces: 7504P202-60) |
|
Immediately | $ 64.79 | ||||
| 3 | 7504P165-60 | Cap, Burner (black) (left Front & Right Front) |
|
- | |||||
| 4 | 7518P459-60 | Grate, Burner (left) |
|
$ 71.74 | |||||
| 4 | 7518P460-60 | Grate, Burner (right) |
|
- | |||||
| 5 | W10168882 | Trim, Cooktop For Ss Model Only (stainless) (front) |
|
$ 126.34 | |||||
| 5 | W10168884 | Trim, Cooktop For Ss Model Only (stainless) (rear) |
|
$ 149.79 | |||||
| 6 | WPW10168628 | Knob, Control (Replaces: W10168628) |
|
$ 55.53 | |||||
| 7 | 7527P133-60 | Holder, Orifice (right Front) |
|
$ 117.06 | |||||
| 7 | WP7527P135-60 | Holder, Orifice (center) (Replaces: 7527P135-60) |
|
$ 121.02 | |||||
| 7 | 7527P136-60 | Holder, Orifice (left Front) |
|
$ 116.83 | |||||
| 7 | 7527P134-60 | Holder, Orifice (right Rear) |
|
$ 66.65 | |||||
| 7 | 7527P137-60 | Holder, Orifice (left Rear) |
|
$ 63.65 | |||||
| 8 | 7505P339-60 | Assembly, Burner Auxiliary (left Rear & Right Rear) |
|
$ 57.66 | |||||
| 8 | 74007736 | Assembly, Burner (center) (Replaces: 7505P306-60) |
|
Immediately | $ 105.36 | ||||
| 8 | 74007735 | Assembly, Burner (left Front & Right Front) (Replaces: 7505P305-60) |
|
Immediately | $ 102.76 | ||||
| 9 | WP3368921 | Screw-burner Head (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 | ||||
| 10 | 7518P461-60 | Grate, Center |
|
- | |||||
| 11 | WP74009336 | Ignitor (Replaces: 7432P121-60) |
|
Immediately | $ 24.30 | ||||
| 12 | WP8273062 | Screw (Replaces: 7101P606-60) |
|
Immediately | $ 7.12 | ||||
| 13 | 8008P064-60 | Grommet, Grate |
|
- | |||||
| 14 | 7109P081-60 | Washer |
|
- | |||||
| 15 | 7114P008-60 | Ring, Retaining |
|
- | |||||
| 16 | WP8008P071-60 | Grommet (Replaces: 8008P071-60) |
|
$ 8.02 |
