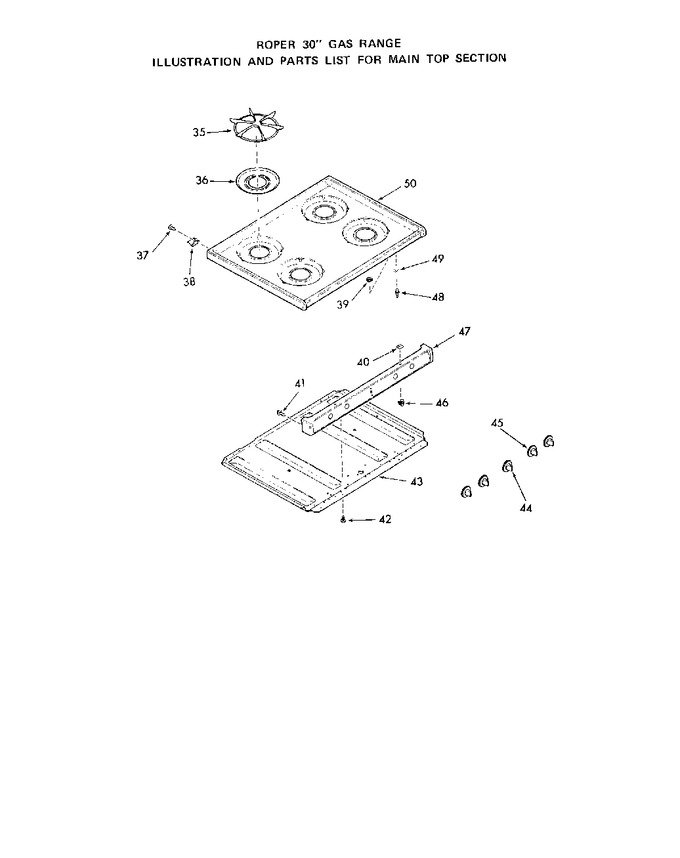

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	316786		Top Grate (4 Required)		Appelez-nous	-
36	322888		Spill Bowl		Appelez-nous	-
37	321337		Screw 10-32x7/16``		Appelez-nous	-
38	301672		Retainer-main Top (2 Required)		Appelez-nous	-
39	239764		Keps Nut 8-32		Appelez-nous	-
40	310218		Washer		Appelez-nous	-
41	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
42	239113		Screw 10-32x3/8``		Appelez-nous	-
43	320408		Burner Box Bottom		Appelez-nous	-
44	322170		Knob-oven Thermostat (all 14630a Models)		Appelez-nous	-
44	318488		Knob-oven Thermostat (all 14631a Models)		Appelez-nous	-
45	314773		Knob-gas Valve (4req) (all 14631a, 14632a Models)		Appelez-nous	-
45	320904		Knob-gas Valve (4req) (all 14630a Models)		Appelez-nous	-
46	24667		Catch-main Top Strike (2 Required)		Appelez-nous	-
47	324531		Manifold Panel (white)		Appelez-nous	-
47	324534		Manifold Panel (golden Wheat)		Appelez-nous	-
47	324535		Manifold Panel (almond)		Appelez-nous	-
47	324537		Manifold Panel (black)		Appelez-nous	-
48	299784		Strike-main Top (2 Required)		Appelez-nous	-
49	99279		Washer		Appelez-nous	-
50	316813		Main Top (white)		Appelez-nous	-
50	316815		Main Top (golden Wheat)		Appelez-nous	-
50	316814		Main Top (almond)		Appelez-nous	-
50	322876		Main Top (chrome)		Appelez-nous	-
