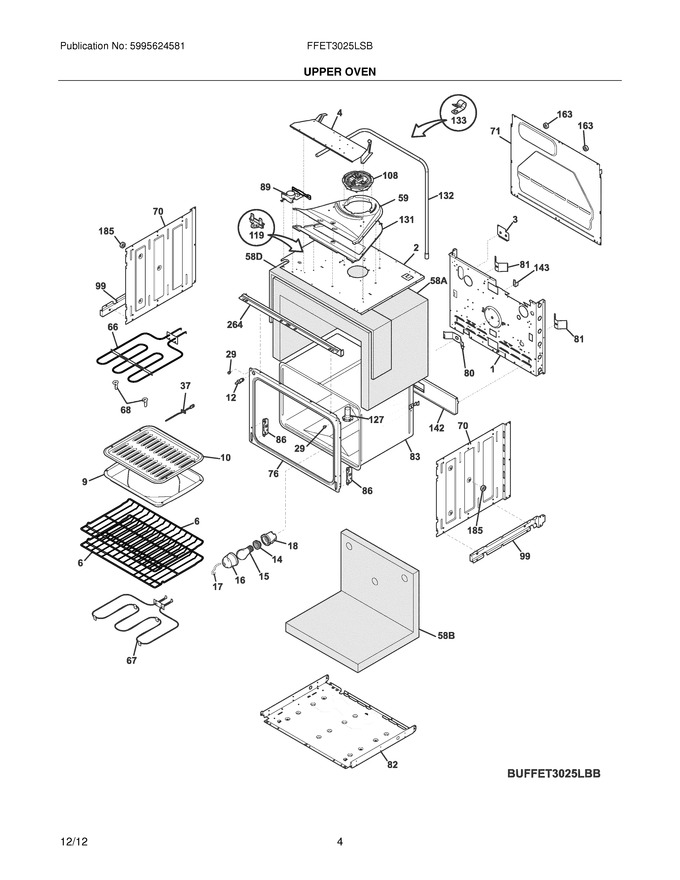

05 - Upper Oven


07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318570500		Panel,insualtion ,top				$ 86.89
3	318402800		Plate,cover				$ 9.23
4	318577700		Panel,mounting		Appelez-nous	-
6	318922306		Rack,oven				$ 146.79
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
29	316517600		Spacer,oven Door				$ 12.05
59	318570600		Duct,cooling Fan		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258765		Shield,insulation ,lower				$ 85.68
83	318261456		Liner,oven Assy				$ 196.19
86	318561100		Receptacle,hinge ,(2)				$ 21.23
99	318252804		Support,side		Appelez-nous	-
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
131	318574801		Bottom,cooling Duct		Appelez-nous	-
132	318579102		Tube,exhaust ,upper		Appelez-nous	-
133	318591500		Clamp,exhaust Tube		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257706		Trim,oven ,black ,front		Appelez-nous	-
58A	318386113		Insulation,oven Wrapper		Appelez-nous	-
58B	318133791		Insulation,oven Back ,back/bottom		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
F108	318575604		Motor,cooling Fan				$ 135.35
F119	5304506123		Thermal Cutoff,121 Deg. ,(2)   (Replaces: 318944000)				$ 31.86
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255808		Element,broil ,3400w				$ 121.70
F67	318254918		Element,bake ,2750w				$ 189.95
F89	318261226		Motor,latch Assy				$ 153.41
FNI	318199787		Wiring Harness,latch ,no Bas		Appelez-nous	-
FNI	318572723		Harness,wiring ,main ,upper Oven		Appelez-nous	-
NI	318585003		Bracket,rear Panel   (Replaces: 318585001)		Appelez-nous	-
NI	316095800		Clip-hold Down				$ 9.93
NI	318579001		Bracket,wire				$ 11.08
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	318268099		Insulation		Appelez-nous	-
NI	5304455945		Spacer,pad		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304476994		Screw,8-18 X 1/4 ,(2)		Appelez-nous	-
NI	5303308450		Screw,8 X 0.375 ,(10)		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
