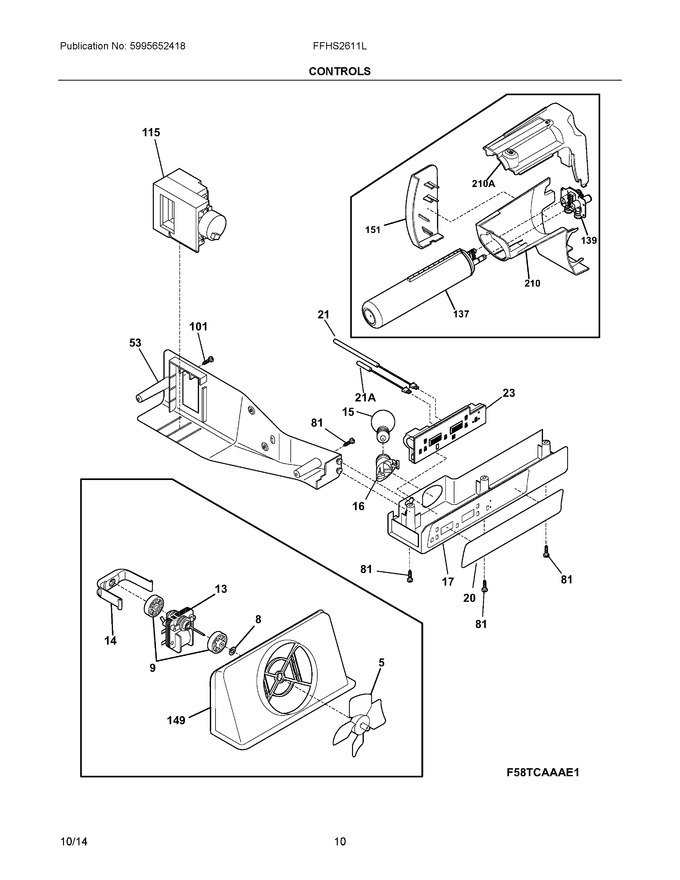

06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5308000010		Fan Blade, Red, Evaporator Fan			Immediately	$ 49.03
8	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
9	241563601		Bushing-motor Mtg			Immediately	$ 17.72
13	808602602		Motor-evap Fan, W/harness   (Replaces: 241854601)				$ 203.63
14	242135301		Clip, Evap Fan Motor, Evap Fan Motor				$ 7.79
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
17	241633511		Box-control, Front   (Replaces: 241633505)				$ 102.77
20	241604010		Label-control Box   (Replaces: 241604005)				$ 4.55
21	241608401		Thermistor-refr				$ 77.97
23	241739704		Control, Electronic, W/housing		Appelez-nous	-
53	241608902		Box-control   (Replaces: 241608901)				$ 103.14
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
101	241637202		Screw, Hex Sems Head, 8-18ab X 1-3/4				$ 5.31
115	241600906		Damper Assy, W/seal   (Replaces: 241600905)			Immediately	$ 200.84
137	WF3CB		Filter-water, Carbon   (Replaces: 242069601)			Immediately	$ 88.23
139	242009604		Base-water Filter   (Replaces: 242009601)			Immediately	$ 33.14
149	241563501		Shroud-fan Orfice		Appelez-nous	-
151	242069701		Cover-water Filter				$ 62.24
210	241983814		Housing-water Filtr   (Replaces: 241983803)				$ 74.42
210A	241998303		Mount-water Filter   (Replaces: 241998302)				$ 14.41
21A	241608501		Thermistor-frzr   (Replaces: 241608502)				$ 50.32
NIA	241528306		Seal, Shroud		Appelez-nous	-
NIA	5304535377		Tape, Aluminum, 3" Wide   (Replaces: 240570304)				$ 31.36
NIB	241737801		Harness-wiring, Control Box				$ 112.23
