View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

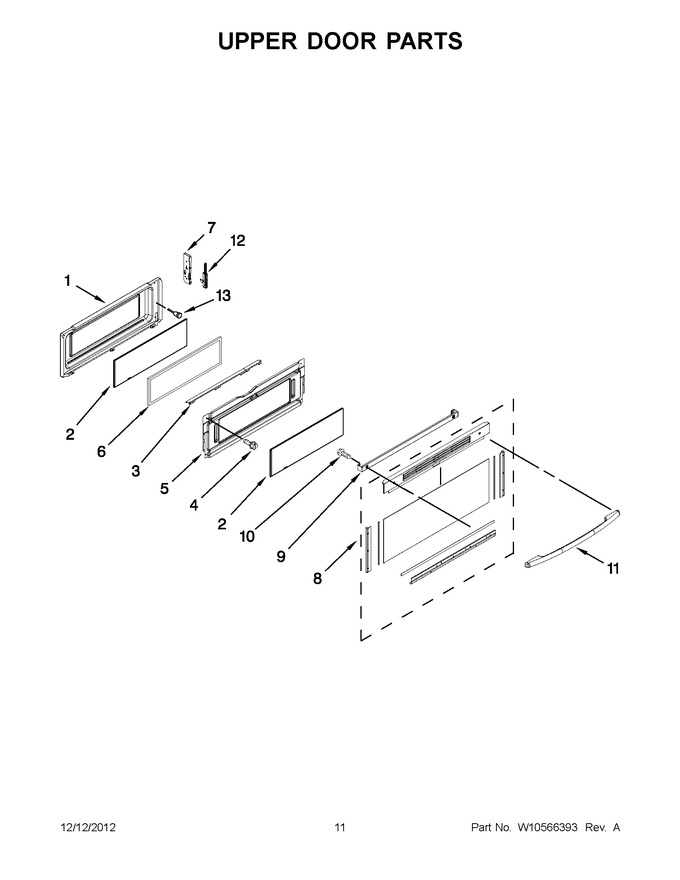

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11051040 | Lining, Door (Replaces: W10485720) |
|
$ 258.00 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W10272707) |
|
$ 153.71 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 147.37 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 216.36 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 85.01 | |||||
| 7 | W10647259 | Receiver (Replaces: W10277006) |
|
Immediately | $ 8.39 | ||||
| 8 | W10346058 | Assembly, Glass Door (black) |
|
$ 128.76 | |||||
| 8 | W10346060 | Assembly, Glass Door (white) |
|
$ 87.08 | |||||
| 8 | W10346061 | Assembly, Glass Door (stainless) |
|
$ 144.39 | |||||
| 9 | WPW10294695 | Bracket, Handle (black) (Replaces: W10294695) |
|
$ 126.02 | |||||
| 10 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 6.98 | ||||
| 11 | W10323584 | Handle, Door (black) |
|
$ 175.78 | |||||
| 11 | WPW10161708 | Handle, Door (stainless) (Replaces: W10161708) |
|
$ 319.73 | |||||
| 11 | W10323581 | Handle, Door (white) |
|
$ 178.21 | |||||
| 12 | W10485731 | Hinge, Door Left |
|
$ 46.88 | |||||
| 12 | W10485730 | Hinge, Door Right |
|
$ 46.79 | |||||
| 13 | W10105790 | Bumper & Screw |
|
$ 6.35 |
