SELECT A DIAGRAM
01 - Cover

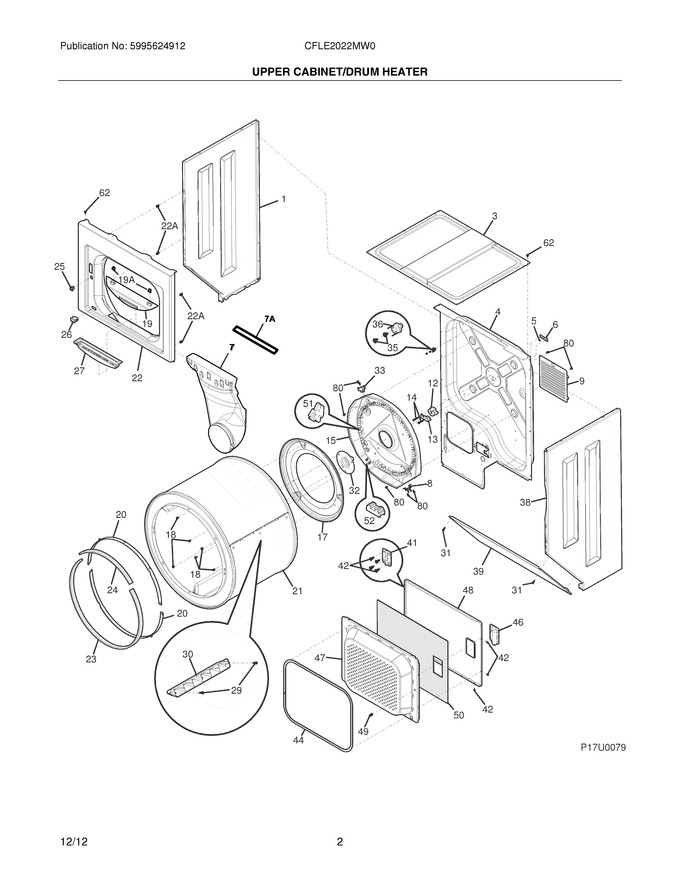

03 - Upper Cabinet/drum/heater
05 - Motor/blower/belt
07 - Control Panel
09 - Lower Cabinet/top
11 - Motor/tub
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137510410 | Panel,left Side ,white |
|
$ 231.62 | |||||
| 3 | 131883301 | Panel,top |
|
$ 276.98 | |||||
| 4 | 137491301 | Panel,rear, Dryer ,stainless |
|
$ 233.57 | |||||
| 5 | 5303281019 | Ball,grounding |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip,ball ,steel ,flat Nut |
|
$ 17.01 | |||||
| 7 | 5304521121 | Duct,air (Replaces: 134086300) |
|
$ 118.56 | |||||
| 8 | 137032600 | Limiter,thermal ,heater |
|
Immediately | $ 22.00 | ||||
| 9 | 5304488480 | Panel,motor Access ,washed |
|
- | |||||
| 12 | 131825900 | Bearing-drum Support |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket,bearing Support (Replaces: 131724300) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive |
|
$ 12.76 | |||||
| 17 | 3204254 | Baffle,heater Shield |
|
$ 129.00 | |||||
| 18 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 19 | 131729301 | Cover-asmy,moisture Sensor |
|
$ 71.82 | |||||
| 20 | 137513300 | Glide,flat, Dryer |
|
Immediately | $ 36.68 | ||||
| 21 | 134122531 | Drum,dryer Svc Kit ,galv. Steel |
|
$ 427.72 | |||||
| 22 | 137511811 | Panel, Front,weld Asmy Lc Dr |
|
- | |||||
| 23 | 5303937183 | Seal,felt ,lower (Replaces: 134134700) |
|
Immediately | $ 35.87 | ||||
| 24 | 5303937182 | Seal,felt ,upper (Replaces: 134036400) |
|
Immediately | $ 29.58 | ||||
| 25 | 131658800 | Door Catch,upper |
|
Immediately | $ 68.38 | ||||
| 27 | 5304516871 | Lint Trap (Replaces: 131359600) |
|
Immediately | $ 39.41 | ||||
| 29 | 131382300 | Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane,straight (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 31 | 131202300 | Screw,10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| 32 | 131777700 | Shaft,drum Support ,ballhitch (Replaces: 137088600) |
|
Immediately | $ 71.87 | ||||
| 35 | 131892100 | Screw,6-20b X 0.230 |
|
- | |||||
| 38 | 137510510 | Panel,right Side ,white |
|
$ 233.08 | |||||
| 39 | 137546910 | Panel,access |
|
$ 184.19 | |||||
| 41 | 134222900 | Hinge,dryer Door |
|
$ 22.68 | |||||
| 42 | 134156200 | Screw,flat Head ,8-18ab X 0.44 ,quad Drive |
|
Immediately | $ 14.89 | ||||
| 44 | 137551901 | Gasket,door (Replaces: 137492200) |
|
Immediately | $ 41.00 | ||||
| 46 | 131789400 | Handle-door, White |
|
Immediately | $ 63.79 | ||||
| 47 | 137365110 | Panel,inner Door ,white |
|
$ 229.64 | |||||
| 48 | 137408403 | Panel,outer Door ,white |
|
Immediately | $ 194.20 | ||||
| 49 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Insulator,heat Shield ,outer Door |
|
$ 60.25 | |||||
| 51 | 131472100 | Insulator,heater Housing |
|
$ 60.01 | |||||
| 62 | 131302800 | Screw,10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 80 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 15No. | 137392700 | Heater Asmy W/housing,elect W/therm |
|
Immediately | $ 205.84 | ||||
| 19A | 5308014350 | Clip,end Cap Mtg ,u-type |
|
- | |||||
| 22A | 137362600 | Pin,panel Locator |
|
$ 35.44 | |||||
| 7A | 131295200 | Seal-air Duct |
|
$ 16.30 | |||||
| F26 | 134813600 | Switch,door |
|
Immediately | $ 43.09 | ||||
| F33 | 3204267 | Thermostat-safety |
|
Immediately | $ 53.49 | ||||
| F36 | 134120900 | Thermal Limiter |
|
Immediately | $ 13.21 | ||||
| F52 | 3202786 | Terminal Block,heater Housing |
|
$ 64.49 | |||||
| FNI | 137352600 | Harness, Door,sw W/sensor |
|
$ 73.74 | |||||
| NI | 137576600 | Plug-light Hole (Replaces: 131870700) |
|
Immediately | $ 14.18 |
