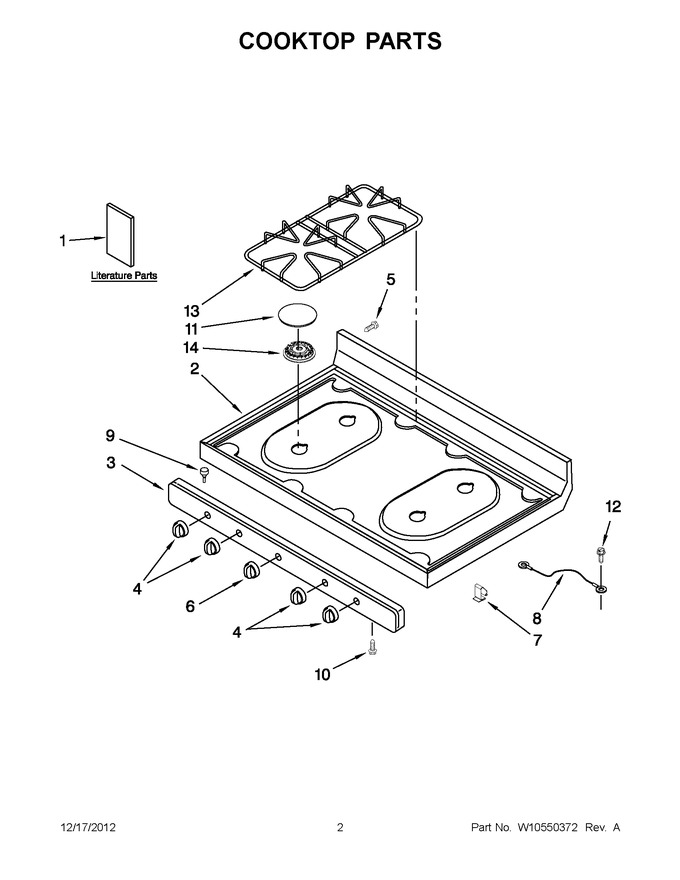

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10477533 | Instructions, Installation (english/french) |
|
- | |||||
| 1 | W10330187 | Use & Care Guide |
|
- | |||||
| 1 | 98007130 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | 98007032 | Tech Sheet |
|
- | |||||
| 2 | WP98017619W | White (Replaces: 98017619W) |
|
$ 311.16 | |||||
| 3 | W10260205 | Panel, Manifold |
|
- | |||||
| 4 | WPW10483313 | Knob, Burner (white) (Replaces: W10483313) |
|
$ 19.35 | |||||
| 5 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 6.26 | |||||
| 6 | WPW10483330 | Knob, Oven (white) (Replaces: W10483330) |
|
$ 19.35 | |||||
| 7 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 10.67 | |||||
| 8 | 3184020 | Wire, Ground (Replaces: 6610473) |
|
$ 74.50 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 12.62 | ||||
| 11 | WP98017461 | Black (Replaces: 98017461) |
|
$ 60.75 | |||||
| 12 | W10850756 | Screw, Ground (Replaces: 8534079) |
|
$ 6.98 | |||||
| 13 | WPW10180089 | Black (Replaces: W10180089) |
|
$ 42.40 | |||||
| 14 | WPW10243396 | Burner, Standard (Replaces: W10243396) |
|
$ 81.38 |
