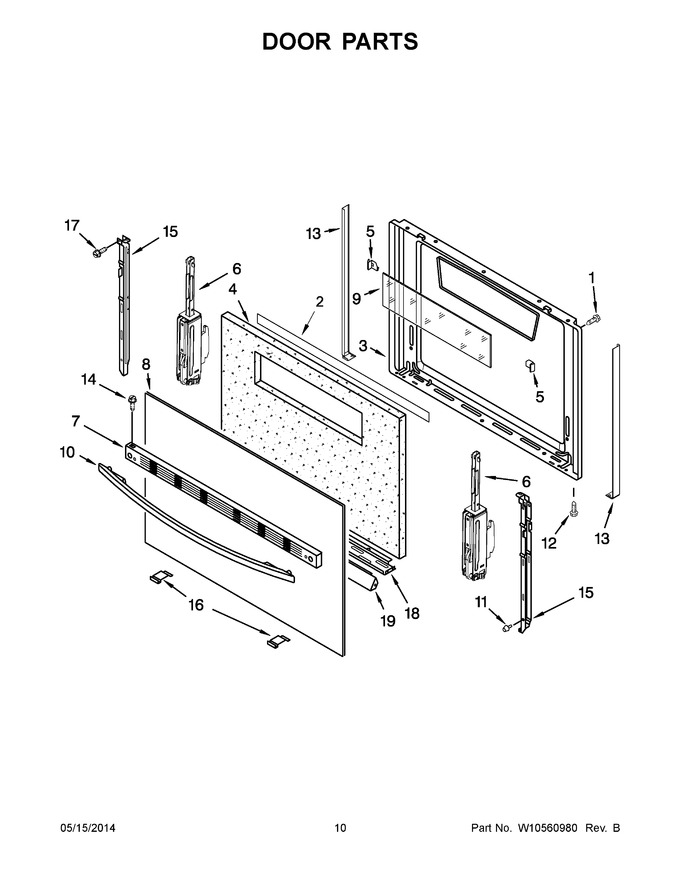

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8533842 | Screw (Replaces: 8533842) |
|
$ 6.26 | |||||
| 2 | W10544222 | Retainer, Insulation Upper |
|
- | |||||
| 3 | 98010182 | Liner, Door |
|
- | |||||
| 4 | W10137238 | Insulation, Door |
|
- | |||||
| 5 | 98004953 | Clip, Glass (right Hand) |
|
- | |||||
| 5 | 98004952 | Clip, Glass (left Hand) |
|
- | |||||
| 6 | 98017875 | Hinge, Oven Door (white) |
|
$ 31.85 | |||||
| 7 | 98017767W | Trim, Top Door (white) |
|
- | |||||
| 7 | 98017767B | Trim, Top Door (black) |
|
- | |||||
| 7 | 98017767T | Trim, Top Door (biscuit) |
|
- | |||||
| 8 | 98017961B | Panel, Outer Door (black) |
|
- | |||||
| 8 | 98017961T | Panel, Outer Door (biscuit) |
|
$ 0.01 | |||||
| 8 | 98017961W | Panel, Outer Door (white) |
|
- | |||||
| 9 | WP98006801 | Glass, Inner Window (Replaces: 98006801) |
|
$ 139.86 | |||||
| 10 | WP98017790W | Handle, Oven Door (white) (Replaces: 98017790W) |
|
$ 201.65 | |||||
| 10 | 98017790B | Handle, Oven Door (black) |
|
- | |||||
| 10 | 98017790T | Handle, Oven Door (biscuit) |
|
- | |||||
| 11 | 98004227 | Bumper |
|
$ 18.94 | |||||
| 12 | WP59002061 | Screw (Replaces: 98004993) |
|
$ 6.98 | |||||
| 13 | 98016787B | Side Trim, Door (black (left Hand)) |
|
- | |||||
| 13 | 98016795T | Side Trim, Door (biscuit (right Hand)) |
|
- | |||||
| 13 | 98016787T | Side Trim, Door (biscuit (left Hand)) |
|
- | |||||
| 13 | 98016787W | Side Trim, Door (white (left Hand)) |
|
- | |||||
| 13 | 98016795B | Side Trim, Door (black (right Hand)) |
|
- | |||||
| 13 | 98016795W | Side Trim, Door (white (right Hand)) |
|
- | |||||
| 14 | WP98008544 | Screw, Handle (Replaces: 98008544) |
|
$ 11.89 | |||||
| 15 | 98004564 | Retainer (right Hand) |
|
- | |||||
| 15 | 98004629 | Retainer (left Hand) |
|
- | |||||
| 16 | 98010185 | Lower Trim, Door (white) |
|
$ 41.41 | |||||
| 16 | WP98010187 | Lower Trim, Door (black) (Replaces: 98010187) |
|
$ 83.31 | |||||
| 16 | 98010184 | Lower Trim, Door (biscuit) |
|
- | |||||
| 17 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 18 | 98004938 | Insulation, Retainer-top |
|
- | |||||
| 19 | 98012904 | Insulation, Retainer-bottom |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 98012220 | Kit, Door Pin |
|
$ 8.91 |
