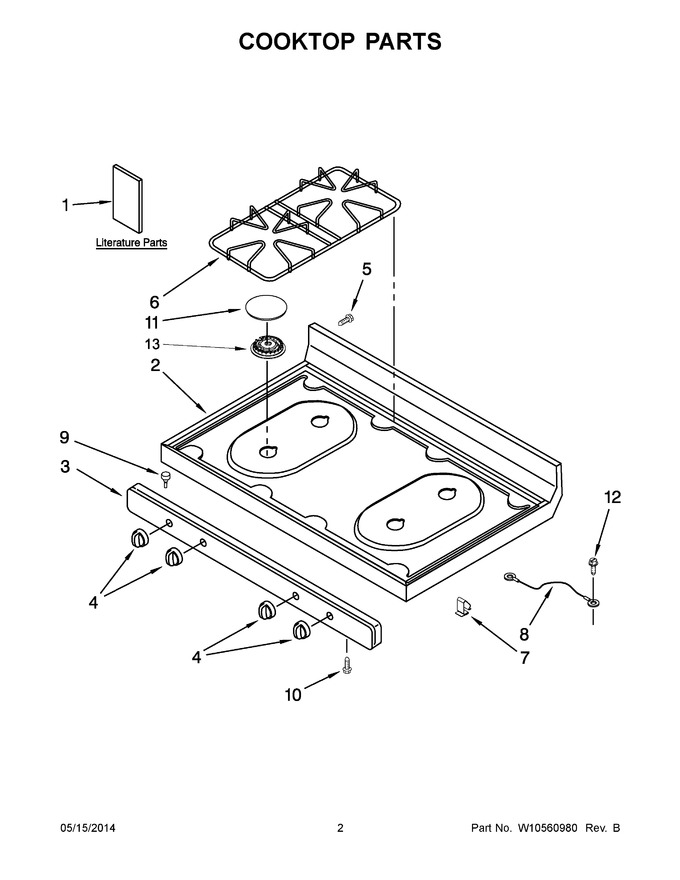

02 - Cooktop Parts


03 - Backguard Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Oven And Broiler Parts


08 - Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10477538		Instructions, Installation		Appelez-nous	-
1	W10203462		Guide, Use & Care		Appelez-nous	-
1	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10142327		Tech Sheet		Appelez-nous	-
2	98017619B		Cooktop (black)		Appelez-nous	-
2	WP98017619W		Cooktop (white)   (Replaces: 98017619W)				$ 311.16
2	98017619T		Cooktop (biscuit)		Appelez-nous	-
3	W10205698		Panel, Manifold (black)		Appelez-nous	-
3	W10205699		Panel, Manifold (biscuit)		Appelez-nous	-
3	W10205696		Panel, Manifold (white)		Appelez-nous	-
4	W10483314		Knob, Burner (biscuit)		Appelez-nous	-
4	WPW10483312		Knob, Burner (black)   (Replaces: W10483312)			Immediately	$ 20.03
4	WPW10483313		Knob, Burner (white)   (Replaces: W10483313)				$ 19.35
5	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
6	W10333861A		Kit, Grate (wetstone)   (Replaces: W10333861)		Appelez-nous	-
6	W10333861A		Kit, Grate (black)   (Replaces: W10335352)		Appelez-nous	-
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 6610473)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
11	WP98017461		Cap, Burner (cumberland Grey)   (Replaces: 98017465)				$ 60.75
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 6.98
13	WPW10243396		Burner, Standard   (Replaces: W10243396)				$ 81.38
