SELECT A DIAGRAM

01 - Control Panel Parts


02 - Upper Oven Parts

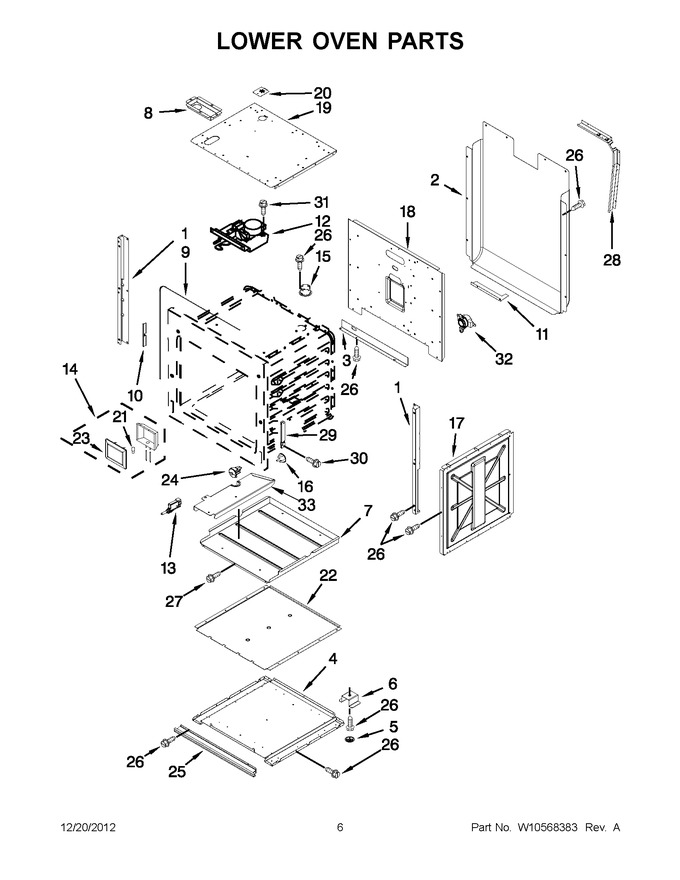

03 - Lower Oven Parts


04 - Upper Oven Door


05 - Lower Oven Door


06 - Internal Oven Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10277424		Bracket, Reinforcement Right Hand				$ 33.58
1	W10277423		Bracket, Reinforcement Left Hand				$ 35.20
2	2624F043-51		Back, Main		Appelez-nous	-
3	W10254041		Baffle, Rear Lower		Appelez-nous	-
4	W10280327		Panel, Bottom				$ 256.81
5	8038P035-60		Foot, Plastic				$ 20.82
6	W10213759		Support, Air Channel		Appelez-nous	-
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	4006F236-45		Box, Lower Vent		Appelez-nous	-
9	W10213818		Gasket				$ 63.05
10	W10176218		Retainer, Gasket				$ 8.11
11	W10186984		Cover, Rear		Appelez-nous	-
12	WPW10213755		Latch, Door Lock   (Replaces: W10213755)				$ 316.35
13	W10286173		Switch, Micro				$ 64.24
14	W10175989		Assembly, Light				$ 95.43
15	8026P063-60		Tube, Vent				$ 39.18
16	74009408		Plug, Button   (Replaces: 7718P033-60)				$ 5.87
17	W10175995		Panel, Side		Appelez-nous	-
18	W10255436		Retainer, Rear Insulation		Appelez-nous	-
19	W10176000		Panel, Top Retainer		Appelez-nous	-
20	4005F721-45		Cover, Vent				$ 29.09
21	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
22	W10280325		Channel, Bottom Air Bake Element		Appelez-nous	-
23	WP74004607		Lens   (Replaces: W10187003)				$ 20.09
24	W10213745		Frame, Micro Switch				$ 8.42
25	WPW10176036		Trim, Bottom Vent (stainless)   (Replaces: W10176036)				$ 171.85
25	W10238700		Trim, Bottom Vent (black)				$ 150.90
26	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
27	WP489464		Screw   (Replaces: W10236129)			Immediately	$ 7.05
28	W10251054		Bracket, Oven Back		Appelez-nous	-
29	W10175993		Hinge, Receiver				$ 44.06
30	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
31	W10236043		Screw				$ 65.26
32	W10277609		Fuse, Thermal				$ 186.67
33	W10254027		Cover, Air Channel		Appelez-nous	-
NI	W10186989		Insulation, Wrap		Appelez-nous	-
NI	W10213750		Insulation, Back		Appelez-nous	-
NI	7002P276-60		Insulation, Door Lock Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
