01 - Control Board Parts


02 - Door Parts


03 - Ventilation Parts


04 - Interior & Airflow Parts


05 - Rack And Turntable Parts


06 - Cabinet And Installation Parts


07 - Convection Parts

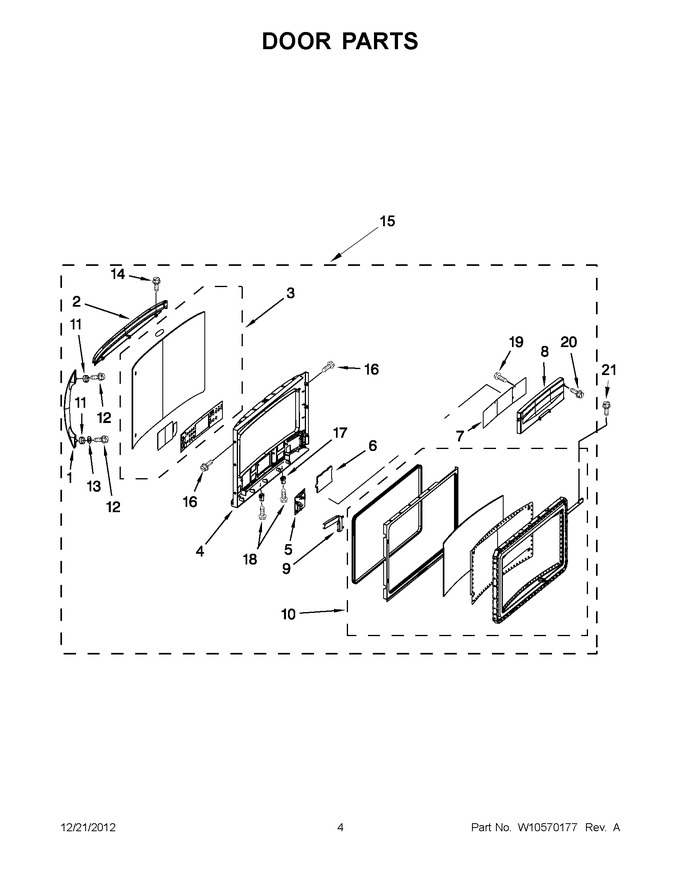

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10244764		Handle (white)		Appelez-nous	-
1	8206121		Handle (black)		Appelez-nous	-
2	W10115583		Trim, Door (black)		Appelez-nous	-
2	8206144		Trim, Door (white)				$ 52.08
3	8206149		Door Control Assy (black And Stainless Models)				$ 341.30
3	8206148		Door Control Assy (white)		Appelez-nous	-
4	W10115586		Outer Door Frame (black)		Appelez-nous	-
4	W10115585		Outer Door Frame (white)		Appelez-nous	-
5	W10233387		Board, User (interface)		Appelez-nous	-
6	W10115589		Lcd Module		Appelez-nous	-
7	8206163		Deflector, Air Guide		Appelez-nous	-
8	W10291312		Air Guide		Appelez-nous	-
9	W10115591		Cable Cover, Door		Appelez-nous	-
10	8206139		Inner Door		Appelez-nous	-
11	8206166		Gasket		Appelez-nous	-
12	8206167		Screw, Top Mountng		Appelez-nous	-
13	8206168		Washer		Appelez-nous	-
14	4393827		Screw		Appelez-nous	-
15	W10146406		Complete Door (black)		Appelez-nous	-
15	W10146404		Complete Door (white)		Appelez-nous	-
16	8206215		Screw M4 X 12		Appelez-nous	-
17	8206178		Spacer, Bottom				$ 7.05
18	8206179		Screw M4 X 20				$ 5.58
19	8169478		Screw		Appelez-nous	-
20	8206180		Screw				$ 11.55
21	W10565483		Hinge Screw ( Not Included With Door Assembly )   (Replaces: W10143963)				$ 11.95

    View Diagram in Separate Window       Print Part List
