SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

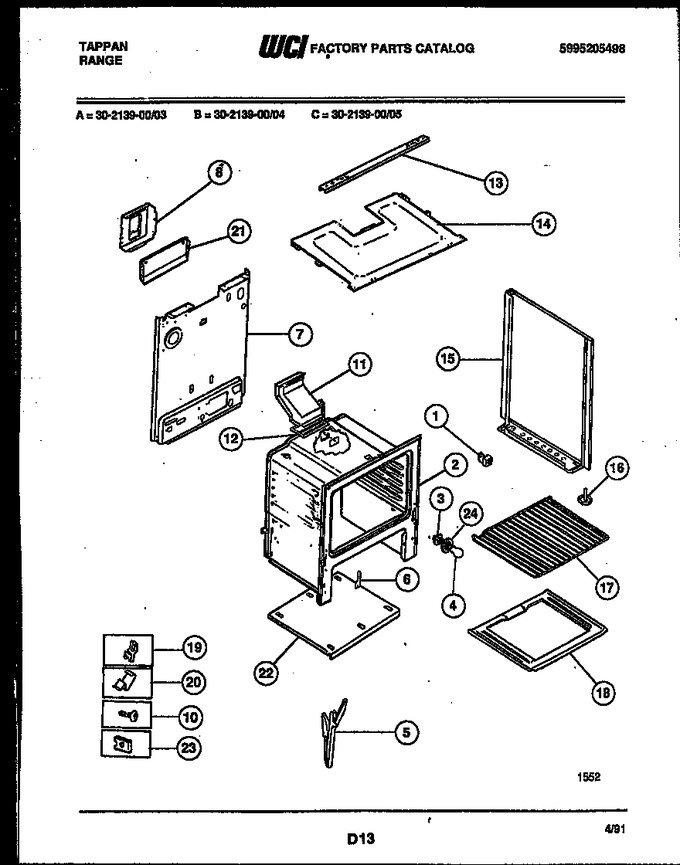

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3041099		Spacer-b/s (8)		Appelez-nous	-
3	3014073		Socket-oven Light		Appelez-nous	-
4	5303208582		Light Bulb		Appelez-nous	-
5	5303131569		Channel - Door Hng		Appelez-nous	-
6	3131570		Cover Hng. Cutout (2)				$ 7.35
7	3203082		Back-main		Appelez-nous	-
8	3131660		Shield, Rear Wall		Appelez-nous	-
10	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
11	3131904		Flue		Appelez-nous	-
12	08067965		Gasket - Flue (1)		Appelez-nous	-
13	3203441		Channel Burner		Appelez-nous	-
14	3204962		Burner Box		Appelez-nous	-
15	5303269518		Pnl B/s - White Rh		Appelez-nous	-
16	3206285		Screw-level (4)		Appelez-nous	-
17	5303131973		Rack, Oven (2)		Appelez-nous	-
18	5303212540		Bottom, Oven		Appelez-nous	-
19	5303011805		Clip, Thermo		Appelez-nous	-
20	08067962		Fastener-wire		Appelez-nous	-
21	3202799		Shield, Flue		Appelez-nous	-
22	5303270160		Base-broil		Appelez-nous	-
23	3203010		Fastener, Hinge   (Replaces: 5303012323)				$ 14.89
24	3051511		Housing-oven Light				$ 60.22
*49109	5304534377		Cord   (Replaces: 3202006)				$ 26.85
*49109	3203455		Shield-top		Appelez-nous	-
*49109	3934056		Anti-tip Bracket		Appelez-nous	-
*49109	19100180225		Wiring Diagram-not For Purchase		Appelez-nous	-
15A	5303269519		Pnl B/s - White Lh		Appelez-nous	-
18A	3017142		Insul - Oven Wrap (non-illustrated)				$ 193.50
18B	3203541		Insul - Oven Back (non-illustrated)		Appelez-nous	-
19B	08067961		Fastener-power Cord		Appelez-nous	-
21A	3131903		Bumper				$ 55.36
21B	3014226		Supt - Oven Bottom (2) (non-illustrated)		Appelez-nous	-
22A	3018607		Cover-plate (non-illustrated)				$ 10.50
22B	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
23A	5303015372		Cover, Front Main (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
