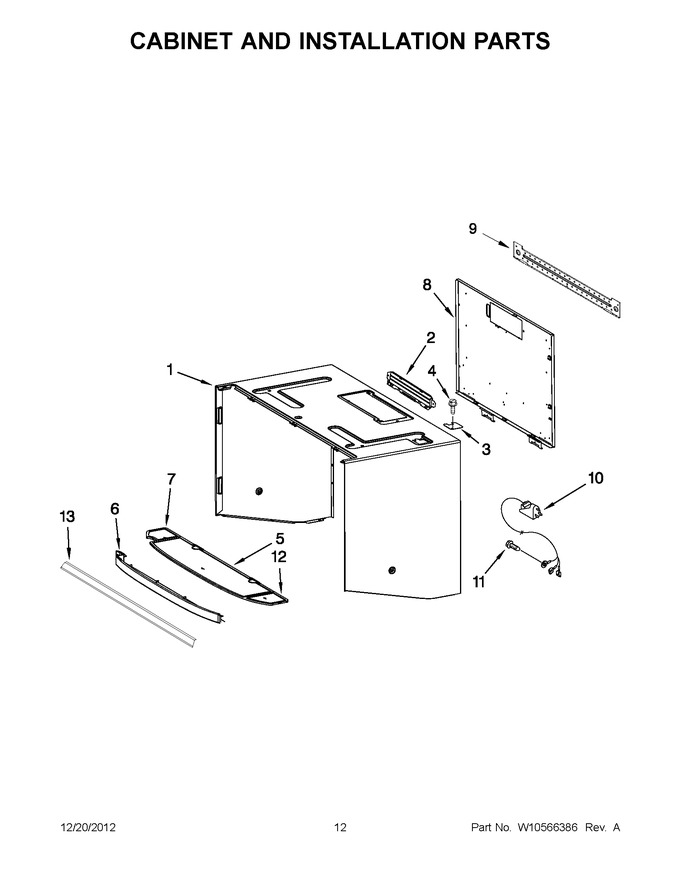

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10283384		Case, Outer (stainless)				$ 147.93
2	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 65.74
3	8184897		Cover, Power Cord		Appelez-nous	-
4	4393472		Screw		Appelez-nous	-
5	8206475		Vent Screen, Top Center				$ 195.44
6	W10116263		Support, Vent Screen (stainless)				$ 37.74
7	8206207		Vent Screen Left Side				$ 97.78
8	8206051		Plate, Back Hardware				$ 51.26
9	W10515503		Plate, Mounting				$ 11.75
10	8206182		Cord, Power				$ 33.67
11	4393836		Screw		Appelez-nous	-
12	8206206		Vent Screen Right Side				$ 173.30
13	8205980		Deflector, Air				$ 85.38
NI	W10470191		Miscellaneous, Harness, Membrane To User Interface   (Replaces: 8206468)				$ 130.68
NI	W10244770		Miscellaneous, Harness, Grill Element And Heater		Appelez-nous	-
NI	8191157		Miscellaneous, Template, Upper				$ 8.81
NI	W10517169		Miscellaneous, Template, Back Wall		Appelez-nous	-
NI	W10553076		Miscellaneous, Harness, Cooktop Lamp And Turntable   (Replaces: 8206487)		Appelez-nous	-
NI	W10113776		Miscellaneous, Harness, Hood Fan		Appelez-nous	-
NI	W10253657		Miscellaneous, Main Harness		Appelez-nous	-
NI	8206185		Miscellaneous, Wire, Ground		Appelez-nous	-
NI	W10112290		Miscellaneous, Harness, Communication Pcba		Appelez-nous	-
NI	W10113777		Miscellaneous, Harness, Inverter		Appelez-nous	-
NI	W10470173		Miscellaneous, Harness, Control   (Replaces: 8206189)				$ 16.76
NI	W10470175		Miscellaneous, Harness, Hood Light   (Replaces: W10113778)				$ 14.30
NI	W10113779		Miscellaneous, Harness, User Interface Ribbon Cable		Appelez-nous	-
NI	W10113780		Miscellaneous, Harness, User Interface Ribbon Cable		Appelez-nous	-
