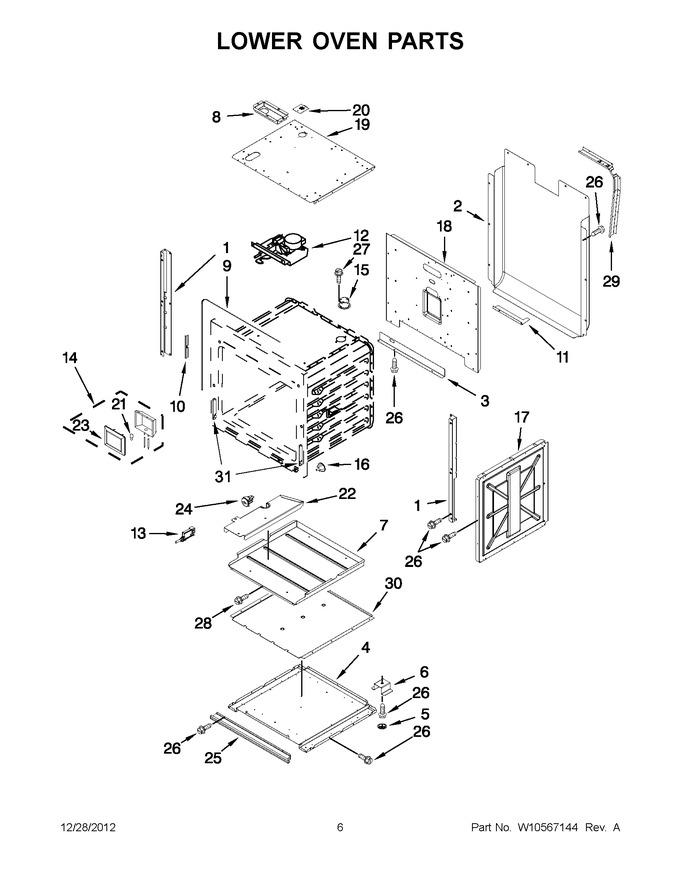

03 - Lower Oven Parts
04 - Upper Oven Door
05 - Lower Oven Door
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10277424 | Bracket, Reinforcement Right Hand |
|
$ 33.58 | |||||
| 1 | W10277423 | Bracket, Reinforcement Left Hand |
|
$ 35.20 | |||||
| 2 | 2624F043-51 | Back, Main |
|
- | |||||
| 3 | W10254041 | Baffle, Rear Lower |
|
- | |||||
| 4 | W10280326 | Panel, Bottom |
|
- | |||||
| 5 | 8038P035-60 | Foot, Plastic |
|
$ 20.82 | |||||
| 6 | W10213759 | Support, Air Channel |
|
- | |||||
| 7 | 3401F079-45 | Pan, Hidden Bake |
|
- | |||||
| 8 | 4006F236-45 | Box, Lower Vent |
|
- | |||||
| 9 | W10213819 | Gasket |
|
$ 119.94 | |||||
| 10 | W10176218 | Retainer, Gasket |
|
$ 8.11 | |||||
| 11 | W10186984 | Cover, Rear |
|
- | |||||
| 12 | WPW10213755 | Latch, Door Lock (Replaces: W10213755) |
|
$ 316.35 | |||||
| 13 | W10286173 | Switch, Micro |
|
$ 64.24 | |||||
| 14 | W10175989 | Assembly, Light |
|
$ 95.43 | |||||
| 15 | 8026P064-60 | Tube, Vent |
|
- | |||||
| 16 | 7718P021-60 | Plug, Button |
|
- | |||||
| 17 | W10175995 | Panel, Side |
|
- | |||||
| 18 | W10255437 | Retainer, Rear Insulation |
|
- | |||||
| 19 | W10176001 | Panel, Top Retainer |
|
- | |||||
| 20 | 4005F721-45 | Cover, Vent |
|
$ 29.09 | |||||
| 21 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 22 | W10254027 | Cover, Air Channel |
|
- | |||||
| 23 | WP74004607 | Lens (Replaces: W10187003) |
|
$ 20.09 | |||||
| 24 | W10213745 | Frame, Micro Switch |
|
$ 8.42 | |||||
| 25 | W10238701 | Trim, Vent Lower (black) |
|
$ 139.89 | |||||
| 25 | W10176037 | Trim, Vent Lower (stainless) |
|
$ 157.91 | |||||
| 26 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 27 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 28 | WP489464 | Screw (Replaces: W10236129) |
|
Immediately | $ 7.05 | ||||
| 29 | W10253684 | Bracket, Oven Back |
|
- | |||||
| 30 | W10280323 | Channel, Bottom Air |
|
- | |||||
| 31 | W10175993 | Hinge, Receiver |
|
$ 44.06 | |||||
| NI | W10186990 | Insulation, Wrap |
|
- | |||||
| NI | W10213747 | Insulation, Back |
|
- | |||||
| NI | 7002P276-60 | Insulation, Door Lock Lower |
|
- |
