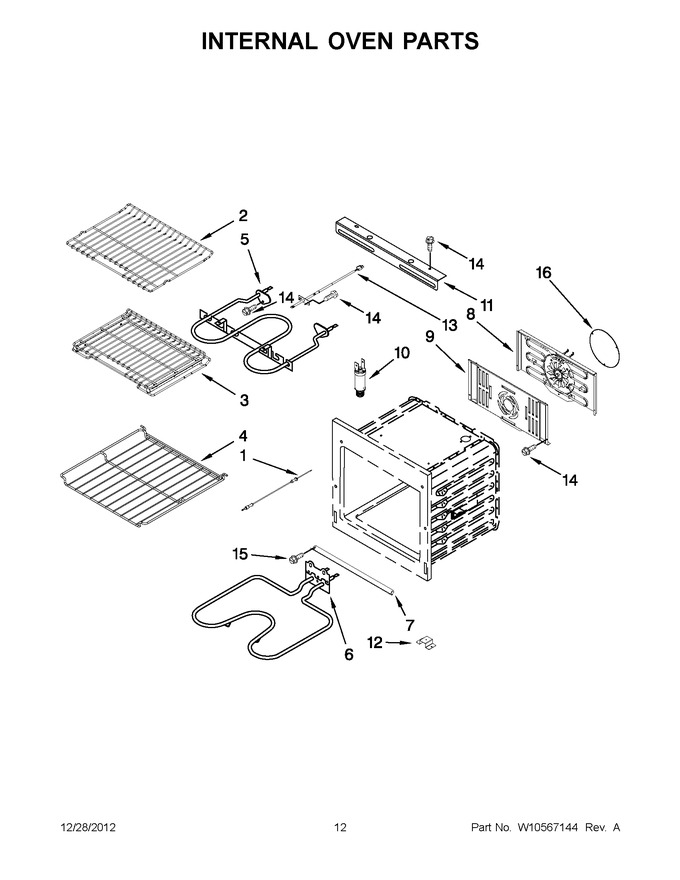

06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7430P038-60 | Probe, Meat (Replaces: 7430P038-60) |
|
$ 129.30 | |||||
| 2 | W10176139 | Rack, Baking |
|
$ 130.46 | |||||
| 3 | W10445854 | Rack, Extending |
|
- | |||||
| 4 | W10186987 | Rack, Offset |
|
- | |||||
| 5 | WPW10184147 | Element, Broil (Replaces: W10314708) |
|
$ 171.96 | |||||
| 6 | WP7406P322-60 | Element, Bake (Replaces: W10314698) |
|
Immediately | $ 173.66 | ||||
| 7 | 3807F678-45 | Retainer, Element Bake |
|
- | |||||
| 8 | W10213813 | Kit, Unity Convection |
|
$ 242.26 | |||||
| 9 | WPW10186795 | Baffle, Unity Convection (Replaces: W10186795) |
|
$ 73.31 | |||||
| 10 | 7408P088-60 | Receptacle, Meat Probe |
|
$ 75.57 | |||||
| 11 | 3807F754-45 | Support, Element |
|
$ 8.34 | |||||
| 12 | 3801F823-51 | Bracket, Support (hidden Bake) |
|
- | |||||
| 13 | WP74008369 | Probe, Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 119.65 | ||||
| 14 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 15 | WP489464 | Screw (Replaces: W10236129) |
|
Immediately | $ 7.05 | ||||
| 16 | W10209035 | Plate, Non-convection |
|
- |
