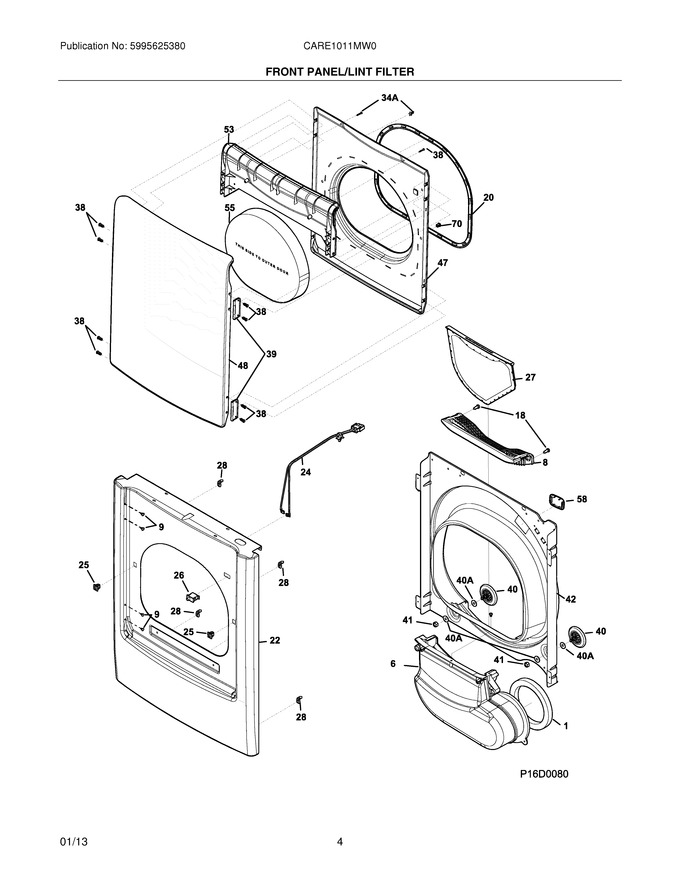

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137068200		Seal,air Duct				$ 14.81
6	134710705		Duct,air ,gray				$ 208.95
8	137554110		Cover,lint Housing   (Replaces: 134701310)			Immediately	$ 111.80
9	131633200		Plug,white				$ 15.90
18	134430300		Screw,indt Pan Head ,10-14 X 0.625 ,quadrex			Immediately	$ 14.89
20	137553402		Gasket,door Seal ,gray   (Replaces: 134720902)				$ 87.12
22	137365910		Panel,front, Fsd				$ 190.42
25	131658800		Door Catch,upper			Immediately	$ 68.38
27	134701410		Filter, Lint ,complete			Immediately	$ 74.14
28	137034500		Clip,mounting ,cabinet Front				$ 43.24
38	137361500		Screw 8-18x0.711 Combo				$ 7.79
39	137365610		Hinge,piano Style		Appelez-nous	-
40	5304523155		Roller,wheel ,complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut,3/8-16				$ 2.98
42	134696110		Bulkhead,panel ,front				$ 239.93
47	137026610		Door,inner, Fsd ,white		Appelez-nous	-
48	137026510		Door,outer, Fsd ,white				$ 214.36
53	137274200		Handle,door, Fsd				$ 69.09
55	137365800		Spacer,fsd Door		Appelez-nous	-
58	137576600		Plug-light Hole   (Replaces: 131870700)			Immediately	$ 14.18
70	134417500		Plug,rectangular ,white				$ 16.22
34A	137285100		Screw,pan Head,no.8-18x.750 .				$ 17.53
40A	134716700		Washer,flat				$ 2.12
F24	137364800		Harness,door Switch		Appelez-nous	-
F26	134813600		Switch,door			Immediately	$ 43.09
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	134716200		Retainer,roller Wheel ,assembly				$ 3.12
NI	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
