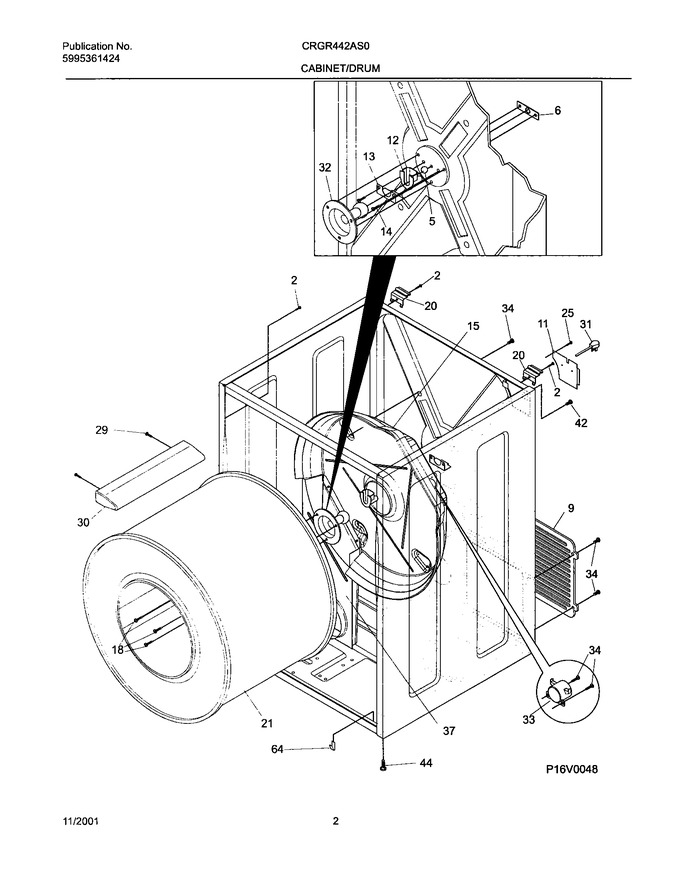

SELECT A DIAGRAM

01 - Cover


03 - Dry Cab,heater


05 - Frnt Pnl,door


07 - Control Panel


09 - Motor,blower


11 - Burner,valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
5	5303281019		Ball				$ 16.30
6	5303281020		Clip-ball				$ 17.01
9	131793201		Panel-access		Appelez-nous	-
11	131363200		Cover-term Block		Appelez-nous	-
12	131825900		Bearing-drum Support			Immediately	$ 10.97
13	131724301		Bracket-bearing   (Replaces: 131724300)			Immediately	$ 25.66
14	131205400		Screw-bracket, 10-16b X 1.375, Cr/sq Drive				$ 12.76
15	131600500		Housing, Gas Heater Assy, W/seal		Appelez-nous	-
18	131168200		Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375   (Replaces: 131477000)			Immediately	$ 14.18
20	131469100		Bracket-hinge				$ 44.84
21	134138200		Asmy-fs Drum-gas-galv   (Replaces: 131427804)			Immediately	$ 592.52
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
29	131382300		Screw-vane, Quadrex Head, 10-14 X 1.00, Special			Immediately	$ 13.46
30	137552900		Vane   (Replaces: 5303201200)				$ 54.95
31	5303281129		Cord-electric Power		Appelez-nous	-
32	131777700		Asmy-shaft (ballhitch)			Immediately	$ 71.87
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
37	131952100		Duct-heat		Appelez-nous	-
42	134154100		Screw-ground Cab,hex Washer Head ,10-32t X 0.375,serrated Head   (Replaces: 131301100)				$ 13.46
44	134037100		Leg-leveling		Appelez-nous	-
64	131704600		Clip				$ 17.69
F33	5308015399		Thermostat - Safety				$ 242.18
NI	5303307893		Lubricant, High Temp				$ 34.02
NI	5303281153		Rear Bearing Kit,includes No.5,6 ,12,13,14,18,32			Immediately	$ 46.64

    View Diagram in Separate Window       Print Part List
