SELECT A DIAGRAM

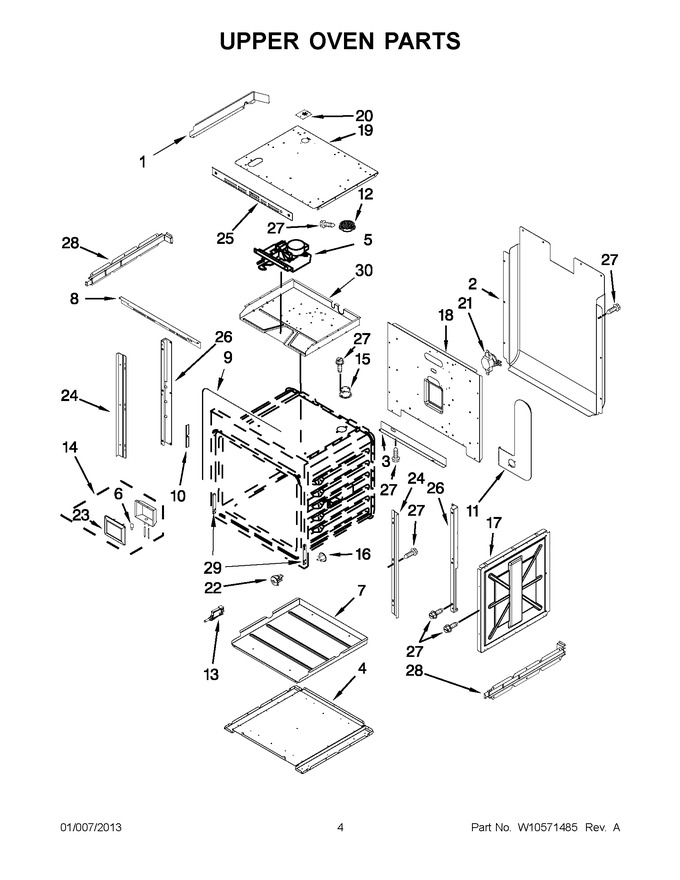

01 - Control Panel Parts


02 - Upper Oven Parts


03 - Lower Oven Parts


04 - Upper Oven Door


05 - Lower Oven Door


06 - Internal Oven Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187018		Baffle, Middle Double		Appelez-nous	-
2	2624F051-51		Back, Main		Appelez-nous	-
3	W10254160		Baffle, Rear		Appelez-nous	-
4	W10280326		Panel, Bottom		Appelez-nous	-
5	WPW10213755		Latch, Door Lock   (Replaces: W10213755)				$ 316.35
6	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	W10176007		Trim, Control Panel (top)		Appelez-nous	-
9	W10213819		Gasket				$ 119.94
10	W10176218		Retainer, Gasket				$ 8.11
11	4006W218-45		Assembly, Box Vent		Appelez-nous	-
12	8034P008-60		Screen, Smoke Eliminator				$ 25.43
13	W10286173		Switch, Micro				$ 64.24
14	W10175989		Assembly, Light				$ 95.43
15	8026P066-60		Tube, Vent		Appelez-nous	-
16	7718P021-60		Plug, Button		Appelez-nous	-
17	W10175995		Panel, Side		Appelez-nous	-
18	W10213725		Retainer, Rear Insulation		Appelez-nous	-
19	W10175999		Panel, Top Retainer		Appelez-nous	-
20	W10213792		Cover, Vent				$ 140.20
21	WP7403P899-60		Switch, High Limit   (Replaces: 7403P899-60)			Immediately	$ 181.29
22	W10213745		Frame, Micro Switch				$ 8.42
23	WP74004607		Lens   (Replaces: W10187003)				$ 20.09
24	W10512902		Trim, Side   (Replaces: W10277587)				$ 253.75
25	W10176015		Trim, Cntrl Panel		Appelez-nous	-
26	W10277423		Bracket, Reinforcement Left Hand				$ 35.20
26	W10277424		Bracket, Reinforcement Right Hand				$ 33.58
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
28	3807F669-51		Support, Upper Oven				$ 10.44
29	W10175993		Hinge, Receiver				$ 44.06
30	7002P276-60		Insulation, Door Lock Lower		Appelez-nous	-
30	W10186749		Divider, Top		Appelez-nous	-
30	W10186990		Insulation, Wrap		Appelez-nous	-
30	W10213747		Insulation, Back		Appelez-nous	-
