01 - Control Panel And Latch Parts


02 - Tub Parts


03 - Door And Toe Panel Parts


04 - Frame Parts

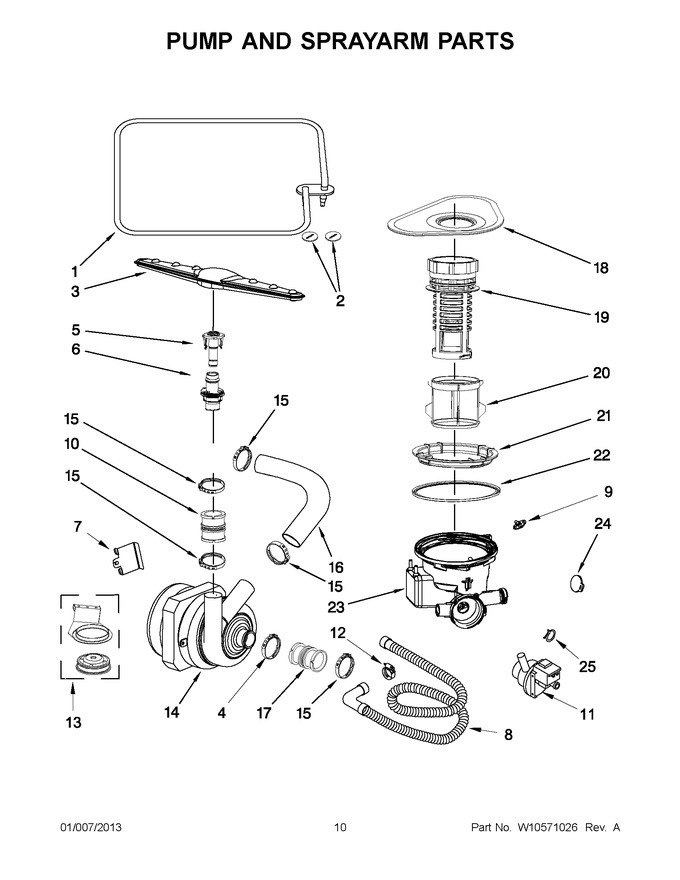

05 - Pump And Sprayarm Parts


06 - Dishrack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10567630		Heating Element   (Replaces: W10567630)				$ 132.15
2	W10567629		Nut, Heating Element				$ 13.16
3	W10567639		Sprayarm				$ 74.71
4	W10783615		Clamp   (Replaces: W10567647)			Immediately	$ 19.53
5	W10567640		Support Assembly		Appelez-nous	-
6	W10567641		Support, Lower Manifold				$ 29.30
7	W10567648		Support, Capacitor		Appelez-nous	-
8	WPW10567628		Hose, Drain   (Replaces: W10567628)				$ 131.44
9	W10567618		Thermistor				$ 187.29
10	W10567643		Hose				$ 70.55
11	W11677711		Pump, Drain   (Replaces: W10567627)			Immediately	$ 217.49
12	W10567654		Clamp				$ 18.94
13	W10567644		Grommet				$ 29.52
14	WPW10567645		Motor Assembly   (Replaces: W10567645)			Immediately	$ 312.00
15	W10789434		Clamp   (Replaces: W10567646)			Immediately	$ 15.77
16	W10567642		Hose				$ 110.73
17	W10567649		Hose				$ 73.02
18	W10567613		Sieve				$ 114.08
19	WPW10567614		Filter, Drain   (Replaces: W10567614)				$ 31.36
20	W10567615		Microfilter				$ 31.72
21	W10567616		Nut, Sump				$ 23.26
22	W10567617		Gasket, Sump				$ 38.35
23	W10567619		Sump				$ 181.47
24	W10567620		Valve, Check		Appelez-nous	-
25	W10567621		Clamp				$ 41.88

    View Diagram in Separate Window       Print Part List
