SELECT A DIAGRAM

01 - Cover Sheet

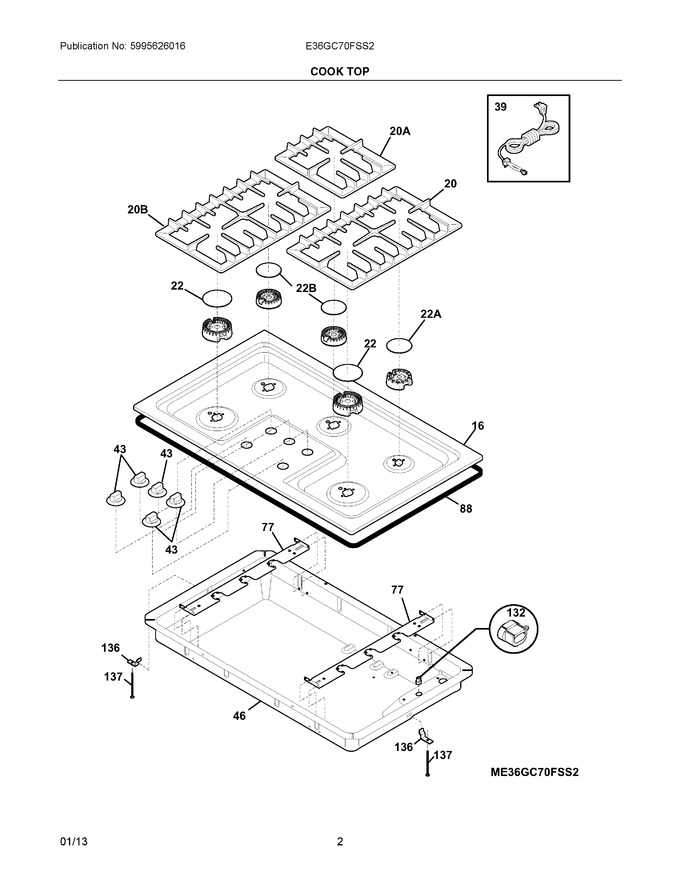

02 - Cooktop


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318279409		Maintop, Stainless				$ 332.33
20	318358004		Grate, Black, Rh		Appelez-nous	-
22	316548900		Cap, 17k Burner, Matte, Black				$ 73.29
39	318144006		Cord, Service		Appelez-nous	-
43	318242221		Knob, Control, (6)			Immediately	$ 110.40
46	318279008		Box, Burner		Appelez-nous	-
77	318564100		Bracket, Transverse		Appelez-nous	-
88	318280121		Gasket, Cooktop, 93				$ 156.92
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	5303285443		Screw, Lock Bracket, 10-24 X 2.00		Appelez-nous	-
20A	318221705		Grate, Black, Center		Appelez-nous	-
20B	318358003		Grate, Black, Lh		Appelez-nous	-
22A	316548600		Cap, Burner, 5k, Black				$ 87.70
22B	316548700		Cap, Burner, 9.5k, Black, (2)				$ 134.23
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	5303323171		Tape, Aluminum, 2		Appelez-nous	-
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
