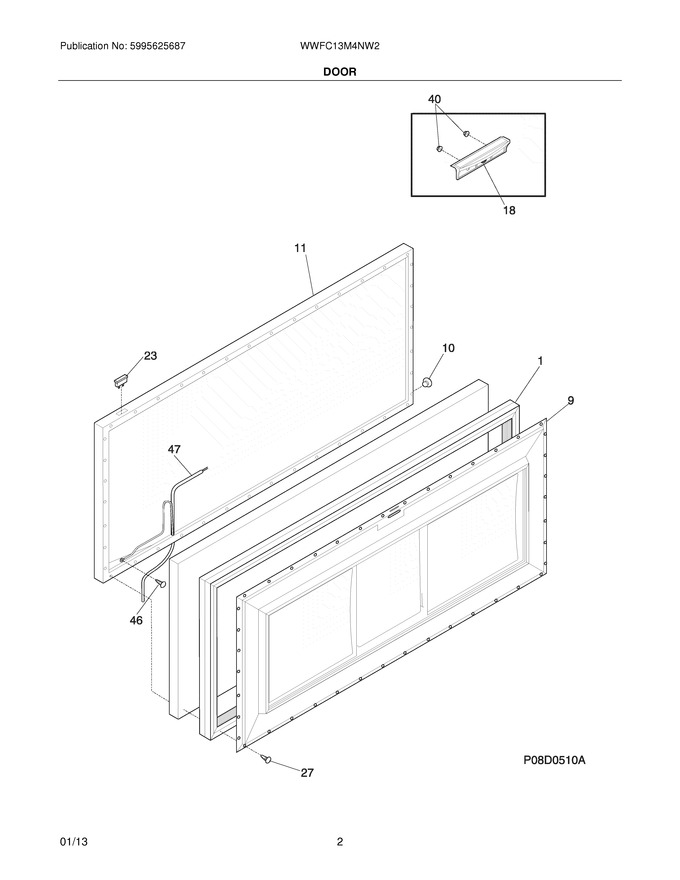

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481111		Gasket-door,white		Appelez-nous	-
9	216056906		Panel-inner Door,white		Appelez-nous	-
10	216923001		Plug Button,1/4`` ,white				$ 9.87
11	216129831		Lid,white				$ 98.18
18	216205005		Handle,white				$ 11.71
23	297181900		Light,signal ,amber				$ 16.96
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
46	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
F47	216823700		Harness-lid/defrost				$ 62.21
NI	5303925098		Insulation				$ 120.65
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
