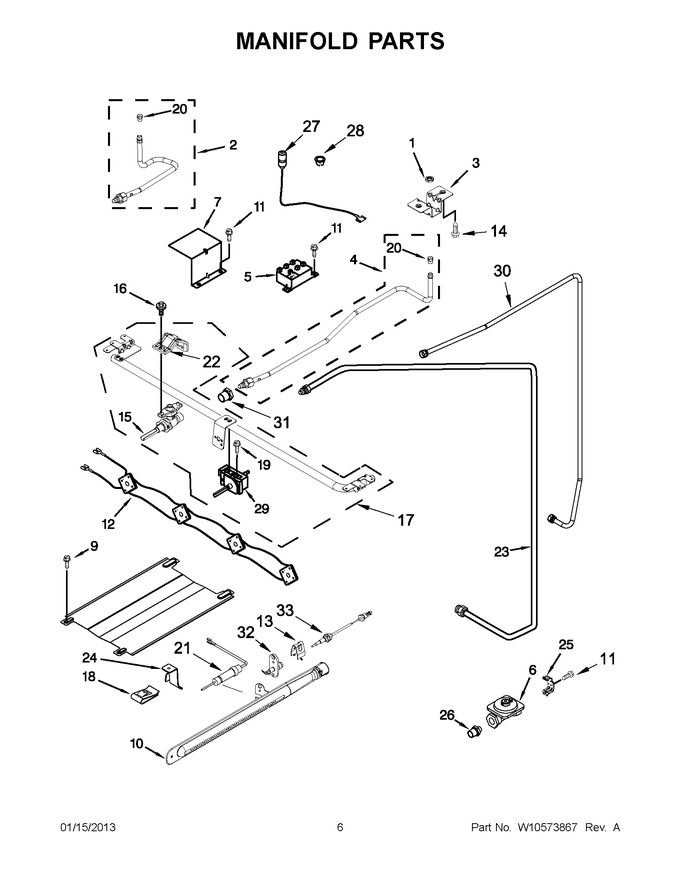

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98017323		Nut		Appelez-nous	-
2	WP98017582		Assembly, Tubing (right Front)   (Replaces: 98017582)				$ 152.39
3	WP98017741		Bracket, Venturi   (Replaces: 98017741)				$ 77.47
4	WP98017359		Assembly, Tubing   (Replaces: 98017359)				$ 166.58
5	W10518414		Module, Spark		Appelez-nous	-
6	98007462		Regulator		Appelez-nous	-
7	98007192		Cover, Module		Appelez-nous	-
8	W10566546		Spreader, Flame   (Replaces: W10518046)		Appelez-nous	-
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
10	W10517877		Burner, Oven		Appelez-nous	-
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	W10518032		Harness, Battery Ignition		Appelez-nous	-
13	98007109		Retainer, Thermocouple		Appelez-nous	-
14	W10837674		Screw   (Replaces: W10146346)				$ 6.90
15	WPW10141709		Valve, Saddle   (Replaces: W10141709)			Immediately	$ 207.32
16	98017517		Screw		Appelez-nous	-
17	W10518326		Assembly, Manifold		Appelez-nous	-
18	98009179		U-nut				$ 12.02
19	WP3400882		Screw   (Replaces: 98005663)			Immediately	$ 6.47
20	WP98017348		Orifice, Natural (9.5k)   (Replaces: 98017348)				$ 78.85
21	W10145060		Ignitor, Hot Surface   (Replaces: W10525210)		Appelez-nous	-
22	W10421119		Bracket, Saddle		Appelez-nous	-
23	WP98004310		Tubing, Thermostat To Pilot   (Replaces: 98004310)				$ 94.03
24	98013314		Locator, Burner		Appelez-nous	-
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98007431		Fitting 3/8to9/16				$ 110.58
27	WPW10209656		Igniter, Top (black)   (Replaces: W10209656)			Immediately	$ 73.07
27	WPW10209657		Igniter, Top (natural)   (Replaces: W10209657)				$ 48.56
28	WPW10278150		Clip, Ignitor   (Replaces: W10278150)				$ 40.61
29	W10503587		Thermostat, Oven		Appelez-nous	-
30	WP98017171		Tubing (manifold To Regulator)   (Replaces: 98017171)				$ 233.12
31	98005514		Nut		Appelez-nous	-
32	WPW10085400		Pilot, Thermostat   (Replaces: W10085400)				$ 85.42
33	WPW10155906		Thermocouple Pilot   (Replaces: W10155906)				$ 255.98
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10537440		Kit, Lp Conversion (battery Ignition)		Appelez-nous	-
