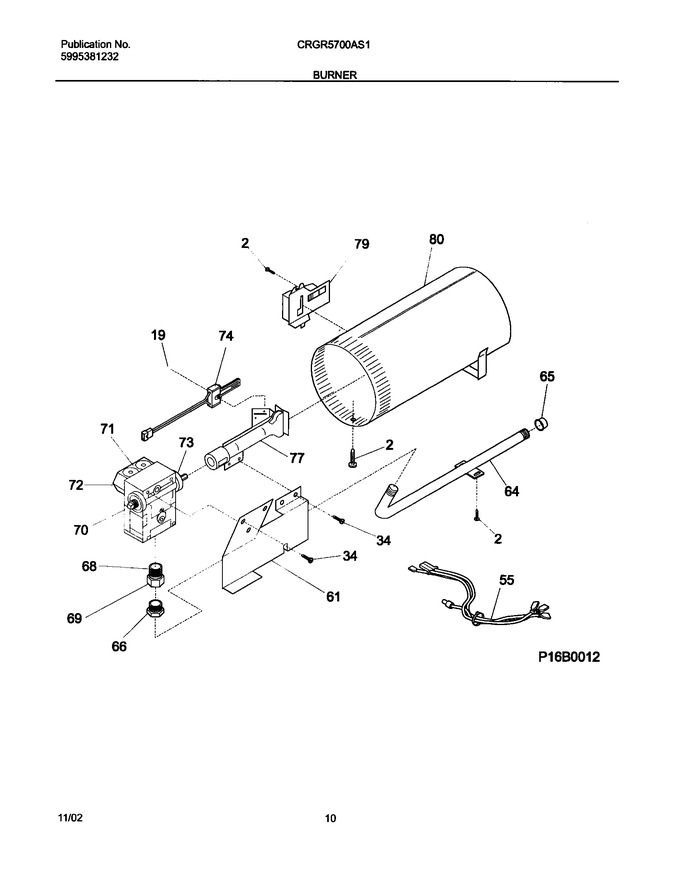

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
19	131715500		Clip,ignitor Mtg				$ 9.22
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
61	134185200		Bracket,burner Mtg		Appelez-nous	-
64	134144900		Pipe,gas ,right Angle		Appelez-nous	-
65	08015112		Cap-pipe		Appelez-nous	-
66	134128700		Bushing,coupling				$ 13.39
68	134185100		Tail Piece,coupling		Appelez-nous	-
70	5303207409		Valve Gas				$ 433.76
71	5303307291		Coil-secondary		Appelez-nous	-
72	5303307292		Coil-booster		Appelez-nous	-
73	5303207410		Orifice, Natural Gas				$ 80.09
77	131762900		Burner Assy,non-adjustable		Appelez-nous	-
F55	134155800		Wiring Harness,gas Valve				$ 52.45
F69	5308015194		Union,hex Nut				$ 13.72
F74	5303937186		Ignitor Assy   (Replaces: 5303281151)				$ 80.61
F79	5303281135		Sensor,radiant			Immediately	$ 102.06
F80	134156101		Tube,burner ,riveted		Appelez-nous	-
NI	131776600		Lp Conversion Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
