SELECT A DIAGRAM
01 - Cooktop, Burner And Grate Parts

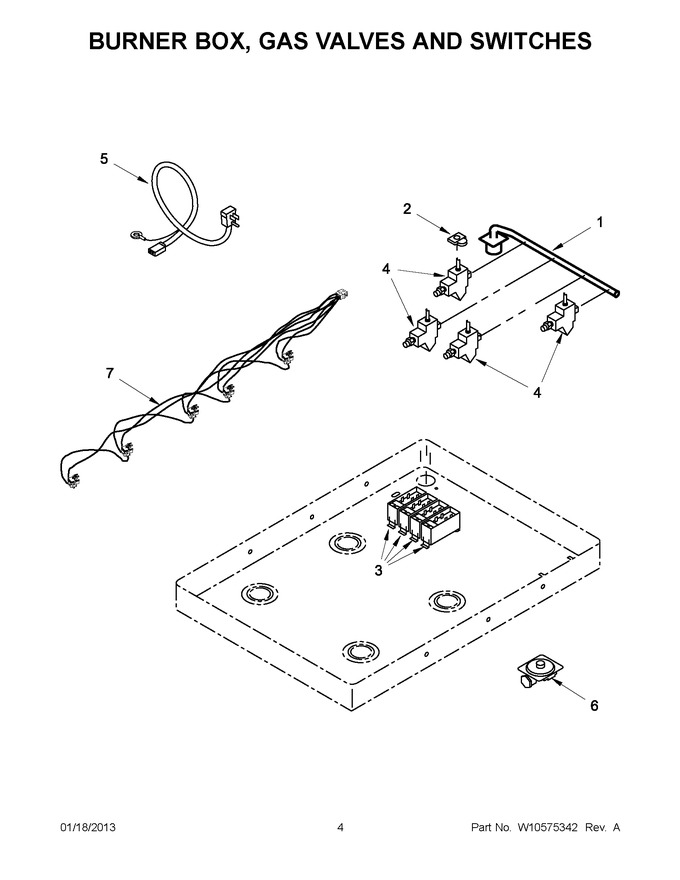

02 - Burner Box, Gas Valves And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8190941 | Pipe, Manifold |
|
- | |||||
| 2 | WP8190913 | Switch, Spark (Replaces: 8190913) |
|
$ 150.64 | |||||
| 3 | W11601369 | Spark Module (Replaces: 8190929) |
|
Immediately | $ 60.62 | ||||
| 4 | 8190915 | Valve, Gas Burner (12,000 Btu Right Rear) |
|
- | |||||
| 4 | 8190914 | Valve, Gas Burner (9,000 Btu Right Front And Left Rear) |
|
- | |||||
| 4 | 8190916 | Valve, Gas Burner (15,000 Btu Left Front) |
|
- | |||||
| 5 | 8190925 | Power Cord |
|
- | |||||
| 6 | 8190926 | Regulator, Pressure |
|
$ 135.67 | |||||
| 7 | W10556221 | Harness, Valves With Switches |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 8190963 | Gas Conversion Kit (natural Gas To Lp Gas) |
|
- | |||||
| NI | 8190978 | Bracket - Mntg |
|
$ 81.04 | |||||
| NI | 8190979 | Screw - Mntg |
|
- | |||||
| NI | W11628754 | Gasket (cooktop Mounting) (Replaces: 8190977) |
|
$ 142.44 |
